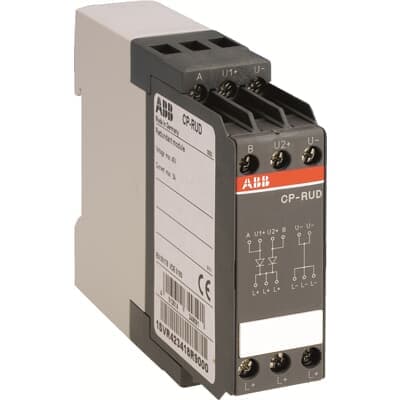

CP-RUD
Product ID:87873
Updated: 2026/7/14
Key Features
- 1Provide automatic redundant power supply operation for critical applications.
- 2Decouple two CP-E power supply units under 48 V.
- 3Feature 2 inputs each up to 2.5 A and 1 output up to 5 A.
- 4Design with a compact plastic enclosure and DIN rail mounting.
- 5Offer high reliability with IP20 protection for enclosure and terminals.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 22.5 mm | Product Net Height | 78 mm |
| Product Net Depth / Length | 100 mm | Product Net Weight | 0.118 kg |
| Function | Redundancy unit | Input Voltage (Uin) | 5 ... 35 V DC |
| Output Voltage (Uout) | 24 V DC | Output Current | 5 A |
| Degree of Protection | Housing IP20 Terminals IP20 | Standards | IEC 60950-1 |
| Ambient Air Temperature | Operation -20 ... +60 °C Storage -40 ... +85 °C | Object Classification Code | T |
| ETIM 7 | EC002540 - DC-power supply | ETIM 8 | EC002540 - DC-power supply |
| ETIM 9 | EC002540 - DC-power supply | eClass | V11.0 : 27040701 |
| UNSPSC | 39121004 | Manufacturer ID | 1SVR423418R9000 |
Specifications may be subject to change without notice
