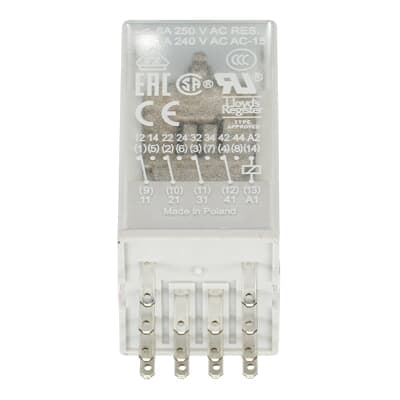

CR-M024AC4
Product ID:83599
Updated: 2026/4/3
Key Features
- 1Operate with a 24 V AC control supply voltage. 2、Switch using 4 c/o (SPDT) contacts rated at 250 V / 6 A. 3、Test manually via the integrated button for contact locking. 4、Monitor energization status with the integrated LED indicator. 5、Mount on DIN Rails and use various available accessories.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 21.2 mm | Product Net Height | 35.6 mm |
| Product Net Depth / Length | 27.5 mm | Product Net Weight | 0.033 kg |
| Function | Pluggable miniature interface relay CR-M | Sub-Function | Relay w/o built in LED |
| Rated Control Supply Voltage (Us) | 24 V AC | Rated Operational Voltage | 250 V AC |
| Rated Frequency (f) | 50 / 60 Hz | Output | 4 c/o (SPDT) contacts |
| Output Signal | 250 V / 6 A | Terminal Type | Flat-Pin Connections |
| Rated Operational Current AC-12 (Ie) | (230 V) 6 A | Rated Operational Current AC-15 (Ie) | (120 V) 1.5 A (230 V) 1 A |
| Rated Operational Current DC-12 (Ie) | (24 V) 6 A | Rated Operational Current DC-13 (Ie) | (24 V) 2 A (250 V) 0.1 A |
| Rated Insulation Voltage (Ui) | 250 V | Degree of Protection | IP40 |
| Mounting Position | 1 | Standards | CAN/CSA C22.2 No.14 IEC/EN 63000 IEC/EN 61810-1 UL 508 |
| Maximum Operating Voltage UL/CSA | 300 V AC | Pilot Duty UL/CSA | B300 |
| Flammability According to UL94 | HB | Ambient Air Temperature | Operation -40 ... +55 °C Storage -40 ... +85 °C |
| Maximum Operating Altitude Permissible | Without Derating 2000 m | Object Classification Code | K |
| ETIM 7 | EC001437 - Switching relay | ETIM 8 | EC001437 - Switching relay |
| ETIM 9 | EC001437 - Switching relay | eClass | V11.0 : 27371601 |
| UNSPSC | 39122331 | E-Number (Finland) | 2712653 |
| E-Number (Norway) | 4187379 | E-Number (Sweden) | 4005350 |
| Manufacturer ID | 1SVR405613R0000 |
Specifications may be subject to change without notice
