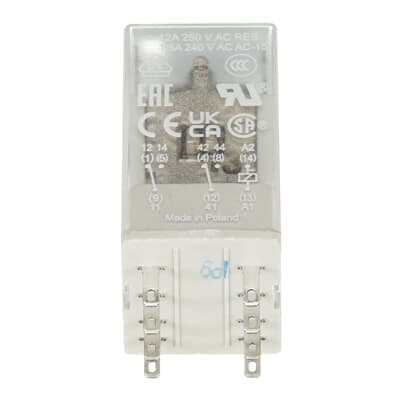

CR-M024DC2
Product ID:83488
Updated: 2026/4/3
Key Features
- 1Adopt a compact design for space-constrained applications. 2、Ensure high reliability for consistent performance. 3、Test easily with an integrated manual button. 4、Connect versatilely with various socket options. 5、Meet compliance with CE, UL, and CCC certifications.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 21.2 mm | Product Net Height | 35.6 mm |
| Product Net Depth / Length | 27.5 mm | Product Net Weight | 0.033 kg |
| Function | Pluggable miniature interface relay CR-M | Sub-Function | Relay w/o built in LED |
| Rated Control Supply Voltage (Us) | 24 V DC | Rated Operational Voltage | 250 V AC |
| Output | 2 c/o (SPDT) contacts | Output Signal | 250 V / 12 A |
| Terminal Type | Flat-Pin Connections | Rated Operational Current AC-12 (Ie) | (230 V) 12 A |
| Rated Operational Current AC-15 (Ie) | (120 V) 3 A (230 V) 1.5 A | Rated Operational Current DC-12 (Ie) | (24 V) 12 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 2.5 A (250 V) 0.1 A | Rated Insulation Voltage (Ui) | 250 V |
| Degree of Protection | IP40 | Mounting Position | 1 |
| Standards | CAN/CSA C22.2 No.14 IEC/EN 63000 IEC/EN 61810-1 UL 508 | Maximum Operating Voltage UL/CSA | 300 V AC |
| Contact Rating UL/CSA | B300 | Pilot Duty UL/CSA | B300 |
| Flammability According to UL94 | HB | Ambient Air Temperature | Operation -40 ... +70 °C Storage -40 ... +85 °C |
| Maximum Operating Altitude Permissible | Without Derating 2000 m | Object Classification Code | K |
| ETIM 7 | EC001437 - Switching relay | ETIM 8 | EC001437 - Switching relay |
| ETIM 9 | EC001437 - Switching relay | eClass | V11.0 : 27371601 |
| UNSPSC | 39122331 | E-Number (Finland) | 2712656 |
| E-Number (Norway) | 4187352 | E-Number (Sweden) | 4005332 |
| Manufacturer ID | 1SVR405611R1000 |
Specifications may be subject to change without notice
