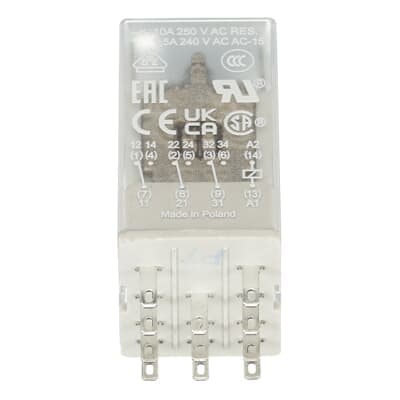

CR-M024DC3
Product ID:84536
Updated: 2026/4/4
Key Features
- 1Utilize cadmium-free contact material for enhanced durability and environmental safety. 2、Operate manually with the integrated test button for convenient troubleshooting. 3、Install in logical or standard sockets for versatile application compatibility. 4、Fit into tight spaces with compact 21.2 x 27.5 x 35.6mm dimensions. 5、Ensure global market compliance by meeting CE and EAC standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 21.2 mm | Product Net Height | 35.6 mm |
| Product Net Depth / Length | 27.5 mm | Product Net Weight | 0.033 kg |
| Function | Pluggable miniature interface relay CR-M | Sub-Function | Relay w/o built in LED |
| Rated Control Supply Voltage (Us) | 24 V DC | Rated Operational Voltage | 250 V AC |
| Output | 3 c/o (SPDT) contacts | Output Signal | 250 V / 10 A |
| Terminal Type | Flat-Pin Connections | Rated Operational Current AC-12 (Ie) | (230 V) 10 A |
| Rated Operational Current AC-15 (Ie) | (120 V) 3 A (230 V) 1.5 A | Rated Operational Current DC-12 (Ie) | (24 V) 10 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 2.5 A (250 V) 0.1 A | Rated Insulation Voltage (Ui) | 250 V |
| Degree of Protection | IP40 | Mounting Position | 1 |
| Standards | CAN/CSA C22.2 No.14 IEC/EN 63000 IEC/EN 61810-1 UL 508 | Maximum Operating Voltage UL/CSA | 300 V AC |
| Pilot Duty UL/CSA | B300 | Flammability According to UL94 | HB |
| Ambient Air Temperature | Operation -40 ... +70 °C Storage -40 ... +85 °C | Maximum Operating Altitude Permissible | Without Derating 2000 m |
| Object Classification Code | K | ETIM 7 | EC001437 - Switching relay |
| ETIM 8 | EC001437 - Switching relay | ETIM 9 | EC001437 - Switching relay |
| eClass | V11.0 : 27371601 | UNSPSC | 39122331 |
| E-Number (Finland) | 2712658 | E-Number (Norway) | 4187363 |
| E-Number (Sweden) | 4005341 | Manufacturer ID | 1SVR405612R1000 |
Specifications may be subject to change without notice
