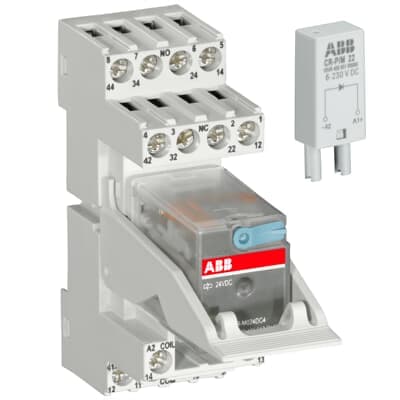

CR-M024DC4LC42
Product ID:82533
Updated: 2026/7/14
Key Features
- 1Integrate relay, socket, holder, and function module for seamless setup.
- 2Operate reliably with a 24 V DC control supply voltage.
- 3Control circuits using 4 c/o (SPDT) contacts rated 250 V / 6 A.
- 4Monitor status via an integrated LED for coil energization.
- 5Mount easily on DIN rails for flexible industrial installation.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 31 mm | Product Net Height | 80 mm |
| Product Net Depth / Length | 95 mm | Product Net Weight | 0.114 kg |
| Function | Pluggable fully assembled miniature interface relay CR-M | Sub-Function | Relay with built in LED |
| Rated Control Supply Voltage (Us) | 24 V DC | Output | 4 c/o (SPDT) contacts |
| Output Signal | 250 V / 6 A | Terminal Type | Spring Terminals |
| Degree of Protection | IP40 | Standards | IEC/EN 63000 IEC/EN 61810-1 IEC/EN 61984 |
| Object Classification Code | K | ETIM 7 | EC001437 - Switching relay |
| ETIM 8 | EC001437 - Switching relay | ETIM 9 | EC001437 - Switching relay |
| eClass | V11.0 : 27371601 | UNSPSC | 39122331 |
| Manufacturer ID | 1SVR405613R1012 |
Specifications may be subject to change without notice
