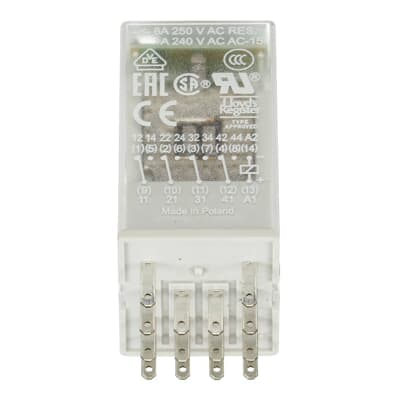

CR-M024DC4LDG
Product ID:85928
Updated: 2026/4/4
Key Features
- 1Choose the compact design measuring 21.2x35.6x27.5 mm. 2、Operate with a reliable 24 V DC control supply voltage. 3、Utilize 4 c/o (SPDT) contacts rated for 250 V / 6 A. 4、Test manually with the integrated button for contact locking. 5、Monitor status via the integrated LED and benefit from reverse polarity protection.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 21.2 mm | Product Net Height | 35.6 mm |
| Product Net Depth / Length | 27.5 mm | Product Net Weight | 0.033 kg |
| Function | Pluggable miniature interface relay CR-M | Sub-Function | Relay with built in LED and Diode Relay with built in LED and gold-plated contacts |
| Rated Control Supply Voltage (Us) | 24 V DC | Rated Operational Voltage | 250 V AC |
| Output | 4 c/o (SPDT) contacts | Output Signal | 250 V / 6 A |
| Terminal Type | Flat-Pin Connections | Rated Operational Current AC-12 (Ie) | (230 V) 6 A |
| Rated Operational Current AC-15 (Ie) | (120 V) 1.5 A (230 V) 1 A | Rated Operational Current DC-12 (Ie) | (24 V) 6 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 2 A (250 V) 0.1 A | Rated Insulation Voltage (Ui) | 250 V |
| Degree of Protection | IP40 | Mounting Position | 1 |
| Standards | CAN/CSA C22.2 No.14 IEC/EN 63000 IEC/EN 61810-1 UL 508 | Maximum Operating Voltage UL/CSA | 300 V AC |
| Contact Rating UL/CSA | B300 | Pilot Duty UL/CSA | B300 |
| Flammability According to UL94 | HB | Ambient Air Temperature | Operation -40 ... +70 °C Storage -40 ... +85 °C |
| Maximum Operating Altitude Permissible | Without Derating 2000 m | Object Classification Code | K |
| ETIM 7 | EC001437 - Switching relay | ETIM 8 | EC001437 - Switching relay |
| ETIM 9 | EC001437 - Switching relay | eClass | V11.0 : 27371601 |
| UNSPSC | 39122331 | E-Number (Norway) | 4187735 |
| Manufacturer ID | 1SVR405618R1400 |
Specifications may be subject to change without notice
