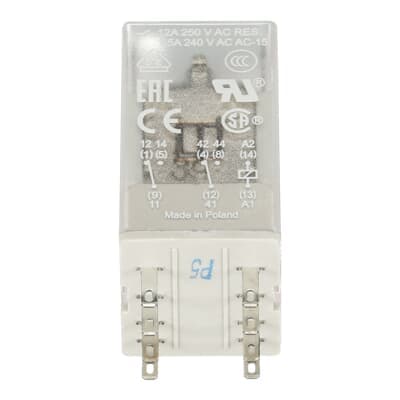

CR-M230AC2
Product ID:84899
Updated: 2026/4/4
Key Features
- 1Maximize panel space with a compact, miniature relay design. 2、Ensure reliable switching with 230VAC control and 250V/12A contact ratings. 3、Simplify testing and maintenance using the integrated orange manual button. 4、Enhance system flexibility via compatibility with standard sockets and modules. 5、Guarantee global compliance with RoHS, VDE, CSA, CCC, and other certificates.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 21.2 mm | Product Net Height | 35.6 mm |
| Product Net Depth / Length | 27.5 mm | Product Net Weight | 0.033 kg |
| Function | Pluggable miniature interface relay CR-M | Sub-Function | Relay w/o built in LED |
| Rated Control Supply Voltage (Us) | 230 V AC | Rated Operational Voltage | 250 V AC |
| Rated Frequency (f) | 50 / 60 Hz | Output | 2 c/o (SPDT) contacts |
| Output Signal | 250 V / 12 A | Terminal Type | Flat-Pin Connections |
| Rated Operational Current AC-12 (Ie) | (230 V) 12 A | Rated Operational Current AC-15 (Ie) | (120 V) 3 A (230 V) 1.5 A |
| Rated Operational Current DC-12 (Ie) | (24 V) 12 A | Rated Operational Current DC-13 (Ie) | (24 V) 2.5 A (250 V) 0.1 A |
| Rated Insulation Voltage (Ui) | 250 V | Degree of Protection | IP40 |
| Mounting Position | 1 | Standards | CAN/CSA C22.2 No.14 IEC/EN 63000 IEC/EN 61810-1 UL 508 |
| Maximum Operating Voltage UL/CSA | 300 V AC | Contact Rating UL/CSA | B300 |
| Pilot Duty UL/CSA | B300 | Flammability According to UL94 | HB |
| Ambient Air Temperature | Operation -40 ... +55 °C Storage -40 ... +85 °C | Maximum Operating Altitude Permissible | Without Derating 2000 m |
| Object Classification Code | K | ETIM 7 | EC001437 - Switching relay |
| ETIM 8 | EC001437 - Switching relay | ETIM 9 | EC001437 - Switching relay |
| eClass | V11.0 : 27371601 | UNSPSC | 39122331 |
| E-Number (Finland) | 2712705 | E-Number (Norway) | 4187361 |
| E-Number (Sweden) | 4005335 | Manufacturer ID | 1SVR405611R3000 |
Specifications may be subject to change without notice
