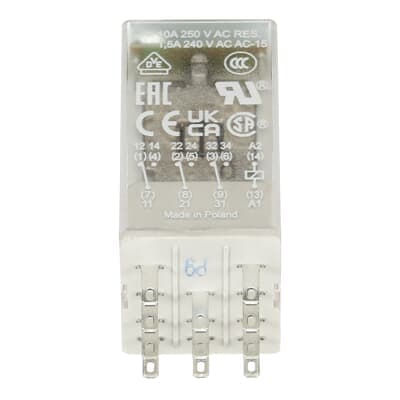

CR-M230AC3L
Product ID:87088
Updated: 2026/4/3
Key Features
- 1Operate with 230 V AC rated control supply voltage. 2、Switch using 3 c/o (SPDT) contacts rated at 250 V / 10 A. 3、Monitor status via an integrated LED for visual indication. 4、Test manually with the integrated button for actuation and contact locking. 5、Mount seamlessly on DIN Rails with standard sockets and accessories.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 21.2 mm | Product Net Height | 35.6 mm |
| Product Net Depth / Length | 27.5 mm | Product Net Weight | 0.033 kg |
| Function | Pluggable miniature interface relay CR-M | Sub-Function | Relay with built in LED |
| Rated Control Supply Voltage (Us) | 230 V AC | Rated Operational Voltage | 250 V AC |
| Rated Frequency (f) | 50 / 60 Hz | Output | 3 c/o (SPDT) contacts |
| Output Signal | 250 V / 10 A | Terminal Type | Flat-Pin Connections |
| Rated Operational Current AC-12 (Ie) | (230 V) 10 A | Rated Operational Current AC-15 (Ie) | (120 V) 3 A (230 V) 1.5 A |
| Rated Operational Current DC-12 (Ie) | (24 V) 10 A | Rated Operational Current DC-13 (Ie) | (24 V) 2.5 A (250 V) 0.1 A |
| Rated Insulation Voltage (Ui) | 250 V | Degree of Protection | IP40 |
| Mounting Position | 1 | Standards | CAN/CSA C22.2 No.14 IEC/EN 63000 IEC/EN 61810-1 UL 508 |
| Maximum Operating Voltage UL/CSA | 300 V AC | Pilot Duty UL/CSA | B300 |
| Flammability According to UL94 | HB | Ambient Air Temperature | Operation -40 ... +55 °C Storage -40 ... +85 °C |
| Maximum Operating Altitude Permissible | Without Derating 2000 m | Object Classification Code | K |
| ETIM 7 | EC001437 - Switching relay | ETIM 8 | EC001437 - Switching relay |
| ETIM 9 | EC001437 - Switching relay | eClass | V11.0 : 27371601 |
| UNSPSC | 39122331 | E-Number (Finland) | 2712708 |
| E-Number (Norway) | 4187405 | E-Number (Sweden) | 4005346 |
| Manufacturer ID | 1SVR405612R3100 |
Specifications may be subject to change without notice
