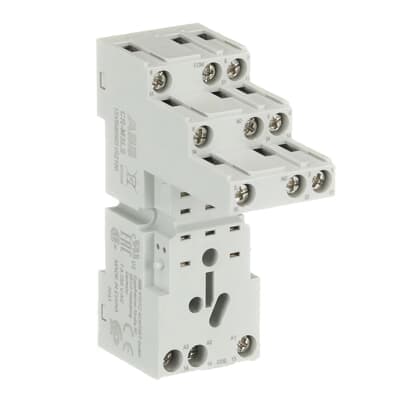

CR-M3LS
Product ID:71299
Updated: 2026/4/3
Key Features
- 1Save panel space with a compact design measuring 27mm wide. 2、Ensure secure connections using screw connection terminals. 3、Operate reliably from -40°C to +70°C up to 2000m. 4、Meet environmental standards with EU RoHS compliance. 5、Customize installations with pluggable modules and markers.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 27 mm | Product Net Height | 61 mm |
| Product Net Depth / Length | 82 mm | Product Net Weight | 0.062 kg |
| Function | Accessory for interface relays CR-M | Sub-Function | Socket for miniature relays |
| Sub-Function 2 | Logical socket for miniature relay 3 c/o | Rated Operational Voltage | 250 V |
| Output | none | Terminal Type | Screw Terminals |
| Rated Operational Current AC-12 (Ie) | (230 V) 7 A | Rated Insulation Voltage (Ui) | 3 V |
| Mounting Position | 1 | Standards | CAN/CSA C22.2 No.14 IEC/EN 63000 IEC/EN 61984 UL 508 |
| Connecting Capacity Main Circuit UL/CSA | Flexible with Ferrule 2x 20-16 AWG Rigid 2x 20-14 AWG Stranded 2 x 20-14 AWG | Flammability According to UL94 | V-0 |
| Ambient Air Temperature | Operation -40 ... +70 °C Storage -40 ... +70 °C | Maximum Operating Altitude Permissible | 2000 m |
| Object Classification Code | K | ETIM 7 | EC001456 - Relay socket |
| ETIM 8 | EC001456 - Relay socket | ETIM 9 | EC001456 - Relay socket |
| eClass | V11.0 : 27371603 | UNSPSC | 39122335 |
| E-Number (Finland) | 2712714 | E-Number (Norway) | 4187429 |
| E-Number (Sweden) | 4005373 | Manufacturer ID | 1SVR405651R2100 |
Specifications may be subject to change without notice
