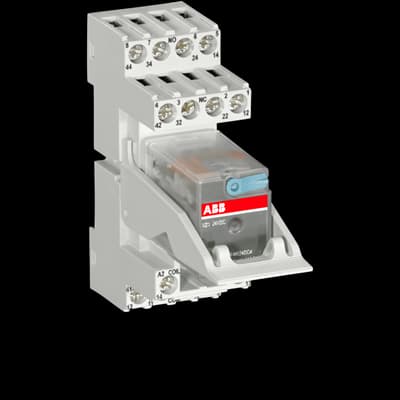

CR-M3LSH
Product ID:82483
Updated: 2026/4/3
Key Features
- 1Support up to 30 A with 3PDT contacts for reliable switching. 2、Offer various coil voltages (12-220 V DC / 12-230 V AC) for global applications. 3、Simplify circuit checks with a manual test button for quick verification. 4、Handle switch-sensitive signals for high precision and durability. 5、Feature a miniature design with screw terminals for easy installation.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 16 mm | Product Net Height | 69 mm |
| Product Net Depth / Length | 76 mm | Product Net Weight | 0.061 kg |
| Function | Pluggable miniature interface relay CR-MX Accessory for interface relays CR-M | Sub-Function | Relay with built in LED Socket for miniature relays |
| Sub-Function 2 | Logical socket for miniature relay 3 c/o | Rated Control Supply Voltage (Us) | 24 V AC |
| Rated Operational Voltage | 250 V | Output Signal | 250 V / 7 A |
| Terminal Type | Screw Terminals | Rated Operational Current AC-12 (Ie) | (230 V) 10 A |
| Rated Insulation Voltage (Ui) | 2 V | Mounting Position | 1 |
| Standards | CAN/CSA C22.2 No.14 IEC/EN 63000 IEC/EN 61984 UL 508 | Connecting Capacity Main Circuit UL/CSA | Flexible with Ferrule 2x 20-16 AWG Rigid 2x 20-14 AWG Stranded 2 x 20-14 AWG |
| Flammability According to UL94 | V-0 | Ambient Air Temperature | Operation -40 ... +70 °C Storage -40 ... +70 °C |
| Maximum Operating Altitude Permissible | 2000 m | Object Classification Code | K |
| ETIM 7 | EC001456 - Relay socket | ETIM 8 | EC001456 - Relay socket |
| ETIM 9 | EC001456 - Relay socket | eClass | V11.0 : 27371603 |
| UNSPSC | 39122335 | Manufacturer ID | 1SVR405651R5100 |
Specifications may be subject to change without notice
