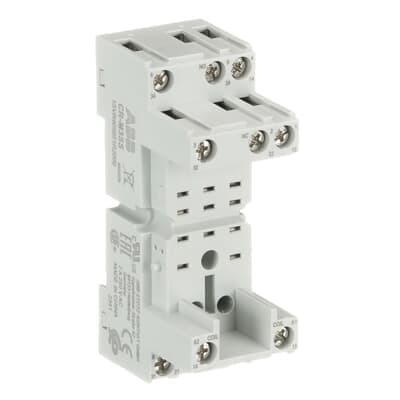

CR-M3SS
Product ID:86595
Updated: 2026/4/3
Key Features
- 1Ensure seamless integration with CR-M relays. 2、Simplify installation using screw connection terminals. 3、Enhance functionality with pluggable function modules. 4、Save panel space with compact 27x42.5x82 mm dimensions. 5、Meet environmental standards via RoHS compliance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 27 mm | Product Net Height | 42.5 mm |
| Product Net Depth / Length | 82 mm | Product Net Weight | 0.068 kg |
| Function | Accessory for interface relays CR-M | Sub-Function | Socket for miniature relays |
| Sub-Function 2 | Standard socket for miniature relay 3 c/o | Rated Operational Voltage | 250 V |
| Output | none | Terminal Type | Screw Terminals |
| Rated Operational Current AC-12 (Ie) | (230 V) 7 A | Rated Insulation Voltage (Ui) | 3 V |
| Mounting Position | 1 | Standards | CAN/CSA C22.2 No.14 IEC/EN 63000 IEC/EN 61984 UL 508 |
| Connecting Capacity Main Circuit UL/CSA | Flexible with Ferrule 2x 20-16 AWG Rigid 2x 20-14 AWG Stranded 2 x 20-14 AWG | Flammability According to UL94 | V-0 |
| Ambient Air Temperature | Operation -40 ... +70 °C Storage -40 ... +70 °C | Maximum Operating Altitude Permissible | 2000 m |
| Object Classification Code | K | ETIM 7 | EC001456 - Relay socket |
| ETIM 8 | EC001456 - Relay socket | ETIM 9 | EC001456 - Relay socket |
| eClass | V11.0 : 27371603 | UNSPSC | 39122335 |
| E-Number (Finland) | 2712715 | E-Number (Norway) | 4187432 |
| E-Number (Sweden) | 4005372 | Manufacturer ID | 1SVR405651R2000 |
Specifications may be subject to change without notice
