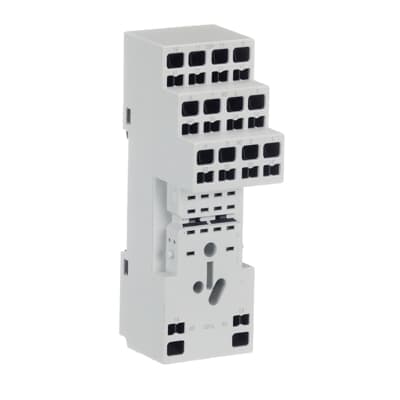

CR-M4LC
Product ID:74875
Updated: 2026/4/3
Key Features
- 1Support CR-M relays with 4 c/o (SPDT) output contacts. 2、Utilize spring connection terminals for secure and fast wiring. 3、Integrate easily with pluggable function modules. 4、Comply with EU Directive 2011/65/EU (RoHS) standards. 5、Order efficiently with available packs of 10 pieces.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 31 mm | Product Net Height | 42.5 mm |
| Product Net Depth / Length | 95 mm | Product Net Weight | 0.075 kg |
| Function | Accessory for interface relays CR-M | Sub-Function | Socket for miniature relays |
| Sub-Function 2 | Logical socket for miniature relay 2 c/o or 4 c/o | Rated Operational Voltage | 300 V |
| Output | none | Terminal Type | Spring Terminals |
| Rated Operational Current AC-12 (Ie) | (230 V) 10 A | Rated Insulation Voltage (Ui) | 4 V |
| Mounting Position | 1 | Standards | CAN/CSA C22.2 No.14 IEC/EN 63000 IEC/EN 61984 UL 508 |
| Connecting Capacity Main Circuit UL/CSA | Flexible with Ferrule 2x 16 AWG Rigid 2x 20-16 AWG Stranded 2 x 20-16 AWG | Flammability According to UL94 | V-0 |
| Ambient Air Temperature | Operation -25 ... +85 °C Storage -40 ... +70 °C | Maximum Operating Altitude Permissible | 2000 m |
| Object Classification Code | K | ETIM 7 | EC001456 - Relay socket |
| ETIM 8 | EC001456 - Relay socket | ETIM 9 | EC001456 - Relay socket |
| eClass | V11.0 : 27371603 | UNSPSC | 39122335 |
| E-Number (Norway) | 4187435 | Manufacturer ID | 1SVR405651R3200 |
Specifications may be subject to change without notice
