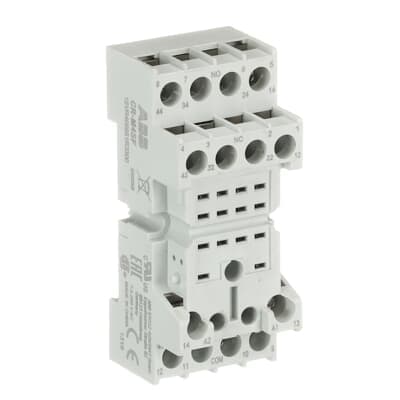

CR-M4SF
Product ID:85846
Updated: 2026/7/15
Key Features
- 1Accommodate 2 or 4 c/o (SPDT) contacts for versatile relay applications.
- 2Secure connections with fork type screw terminals.
- 3Enhance functionality using pluggable modules like LED indicators.
- 4Install easily with snap-on DIN rail mounting.
- 5Meet global standards including UL 508 and CE.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 22.5 mm | Product Net Height | 61 mm |
| Product Net Depth / Length | 82 mm | Product Net Weight | 0.048 kg |
| Function | Accessory for interface relays CR-M | Sub-Function | Socket for miniature relays |
| Sub-Function 2 | Standard socket for miniature relay 2 c/o or 4 c/o | Rated Operational Voltage | 250 V |
| Output | none | Terminal Type | Fork Screw Terminals |
| Rated Operational Current AC-12 (Ie) | (230 V) 7 A | Rated Insulation Voltage (Ui) | 4 V |
| Mounting Position | 1 | Standards | CAN/CSA C22.2 No.14 IEC/EN 63000 IEC/EN 61984 UL 508 |
| Connecting Capacity Main Circuit UL/CSA | Flexible with Ferrule 2x 20-16 AWG Rigid 2x 20-14 AWG Stranded 2 x 20-14 AWG | Flammability According to UL94 | V-0 |
| Ambient Air Temperature | Operation -40 ... +70 °C Storage -40 ... +70 °C | Maximum Operating Altitude Permissible | 2000 m |
| Object Classification Code | K | ETIM 7 | EC001456 - Relay socket |
| ETIM 8 | EC001456 - Relay socket | ETIM 9 | EC001456 - Relay socket |
| eClass | V11.0 : 27371603 | UNSPSC | 39122335 |
| Manufacturer ID | 1SVR405651R3300 |
Specifications may be subject to change without notice
