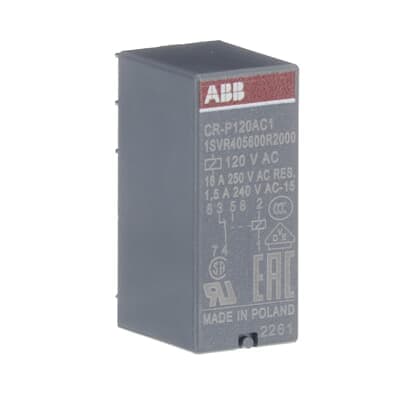

CR-P120AC1
Product ID:84727
Updated: 2026/4/4
Key Features
- 1Save space in control panels with a compact design. 2、Ensure reliable performance with 120V AC control voltage. 3、Achieve IP67 protection against dust and water immersion. 4、Install flexibly on PCBs or with ABB sockets. 5、Enhance functionality with included sockets and markers.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 12.7 mm | Product Net Height | 15.7 mm |
| Product Net Depth / Length | 29 mm | Product Net Weight | 0.014 kg |
| Function | Pluggable pcb interface relay CR-P | Sub-Function | Relay w/o built in LED |
| Rated Control Supply Voltage (Us) | 120 V AC | Rated Operational Voltage | 400 V AC |
| Output | 1 c/o (SPDT) contact | Output Signal | 250 V / 16 A |
| Terminal Type | Soldering Pins | Rated Operational Current AC-12 (Ie) | (230 V) 16 A |
| Rated Operational Current AC-15 (Ie) | (120 V) 3 A (230 V) 1.5 A | Rated Operational Current DC-12 (Ie) | (24 V) 16 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 2.5 A (250 V) 0.1 A | Rated Insulation Voltage (Ui) | 400 V |
| Degree of Protection | IP67 | Mounting Position | 1 |
| Standards | IEC/EN 61810-1 | Maximum Operating Voltage UL/CSA | 300 V AC |
| Contact Rating UL/CSA | B300 | Pilot Duty UL/CSA | B300 |
| Flammability According to UL94 | V-0 | Ambient Air Temperature | Operation -40 ... +70 °C Storage -40 ... +85 °C |
| Maximum Operating Altitude Permissible | Without Derating 2000 m | Object Classification Code | K |
| ETIM 7 | EC001437 - Switching relay | ETIM 8 | EC001437 - Switching relay |
| ETIM 9 | EC001437 - Switching relay | eClass | V11.0 : 27371601 |
| UNSPSC | 39122331 | E-Number (Finland) | 2712750 |
| E-Number (Norway) | 4187335 | Manufacturer ID | 1SVR405600R2000 |
Specifications may be subject to change without notice
