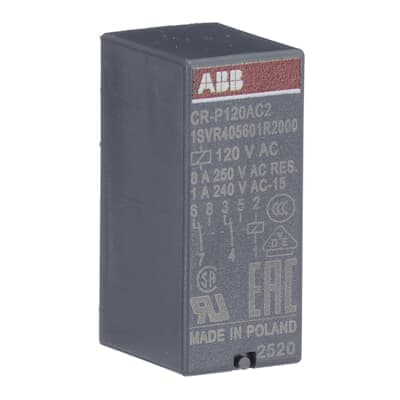

CR-P120AC2
Product ID:87231
Updated: 2026/4/3
Key Features
- 1Choose a compact design to save crucial panel space. 2、Ensure high reliability with 120V AC control and 250V/8A SPDT contacts. 3、Gain IP67 protection against dust and temporary water immersion. 4、Select versatile mounting on PCB or with ABB sockets. 5、Expand functionality with available sockets and modules.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 12.7 mm | Product Net Height | 15.7 mm |
| Product Net Depth / Length | 29 mm | Product Net Weight | 0.014 kg |
| Function | Pluggable pcb interface relay CR-P | Sub-Function | Relay w/o built in LED |
| Rated Control Supply Voltage (Us) | 120 V AC | Rated Operational Voltage | 400 V AC |
| Rated Frequency (f) | 50 / 60 Hz | Output | 2 c/o (SPDT) contacts |
| Output Signal | 250 V / 8 A | Terminal Type | Soldering Pins |
| Rated Operational Current AC-12 (Ie) | (230 V) 8 A | Rated Operational Current AC-15 (Ie) | (120 V) 3 A (230 V) 1.5 A |
| Rated Operational Current DC-12 (Ie) | (24 V) 8 A | Rated Operational Current DC-13 (Ie) | (24 V) 2 A (250 V) 0.1 A |
| Rated Insulation Voltage (Ui) | 400 V | Degree of Protection | IP67 |
| Mounting Position | 1 | Standards | IEC/EN 61810-1 |
| Maximum Operating Voltage UL/CSA | 300 V AC | Pilot Duty UL/CSA | B300 |
| Flammability According to UL94 | V-0 | Ambient Air Temperature | Operation -40 ... +70 °C Storage -40 ... +85 °C |
| Maximum Operating Altitude Permissible | Without Derating 2000 m | Object Classification Code | K |
| ETIM 7 | EC001437 - Switching relay | ETIM 8 | EC001437 - Switching relay |
| ETIM 9 | EC001437 - Switching relay | eClass | V11.0 : 27371601 |
| UNSPSC | 39122331 | E-Number (Finland) | 2712751 |
| E-Number (Norway) | 4187344 | Manufacturer ID | 1SVR405601R2000 |
Specifications may be subject to change without notice
