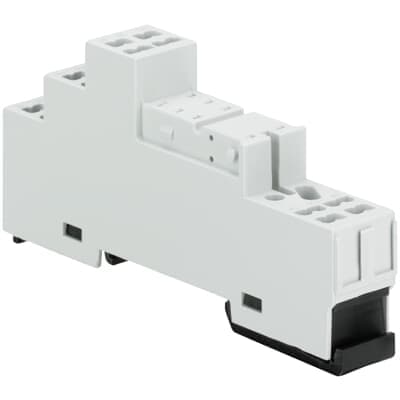

CR-PLC
Product ID:74915
Updated: 2026/7/14
Key Features
- 1Suit CR-P relays with 1 or 2 c/o contacts.
- 2Utilize spring connection terminals for secure, reliable wiring.
- 3Comply with international standards including UL 508 and IEC 61984.
- 4Operate reliably from -40°C to +70°C ambient temperature.
- 5Feature a compact design weighing only 0.042 kg.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 16 mm | Product Net Height | 45.2 mm |
| Product Net Depth / Length | 97 mm | Product Net Weight | 0.042 kg |
| Function | Accessory for interface relays CR-P | Sub-Function | Socket for PCB relays |
| Sub-Function 2 | Logical socket for pcb relay 1 c/o or 2 c/o | Rated Operational Voltage | 250 V |
| Output | none | Terminal Type | Spring Terminals |
| Rated Operational Current AC-12 (Ie) | (230 V) 2 A | Rated Insulation Voltage (Ui) | 5 V |
| Mounting Position | 1 | Standards | CAN/CSA C22.2 No.14 IEC/EN 63000 IEC/EN 61984 UL 508 |
| Connecting Capacity Main Circuit UL/CSA | Flexible with Ferrule 2x 16 AWG Rigid 2x 24-16 AWG Stranded 2 x 24-16 AWG | Flammability According to UL94 | V-0 |
| Ambient Air Temperature | Operation -40 ... +70 °C Storage -40 ... +70 °C | Maximum Operating Altitude Permissible | 2000 m |
| Object Classification Code | K | ETIM 7 | EC001456 - Relay socket |
| ETIM 8 | EC001456 - Relay socket | ETIM 9 | EC001456 - Relay socket |
| eClass | V11.0 : 27371603 | UNSPSC | 39122335 |
| E-Number (Norway) | 4187349 | Manufacturer ID | 1SVR405650R0200 |
Specifications may be subject to change without notice
