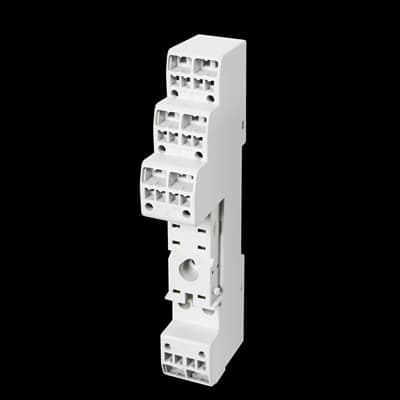

CR-PLP
Product ID:85852
Updated: 2026/7/15
Key Features
- 1Install cables tool-free, saving up to 50% of installation time.
- 2Ensure secure connections in high vibration and shock applications.
- 3Achieve IP67 protection against dust and water in harsh environments.
- 4Connect flexibly with 1 or 2 c/o CR-P relays.
- 5Guarantee excellent contact security and high uptime with robust design.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 15.8 mm | Product Net Height | 98.4 mm |
| Product Net Depth / Length | 42.5 mm | Product Net Weight | 0.036 kg |
| Function | Accessory for interface relays CR-P | Sub-Function | Socket for PCB relays |
| Sub-Function 2 | Standard socket for pcb relay 1 c/o or 2 c/o | Rated Operational Voltage | 250 V |
| Output Signal | 250 V / 10 A | Terminal Type | Push-in Spring Terminals |
| Rated Insulation Voltage (Ui) | 2000 V | Wire Stripping Length | 10 mm |
| Recommended Screw Driver | 2.5 | Mounting Position | 1 |
| Standards | CAN/CSA C22.2 No.14 IEC/EN 63000 IEC/EN 61984 UL 508 | Connecting Capacity Main Circuit UL/CSA | Flexible with Ferrule 2x 20-17 AWG Rigid 2x 20-16 AWG Stranded 2 x 20-16 AWG |
| Flammability According to UL94 | V-0 | Ambient Air Temperature | Operation -40 ... +70 °C Storage -40 ... +70 °C |
| Maximum Operating Altitude Permissible | 2000 m | Object Classification Code | K |
| ETIM 7 | EC001456 - Relay socket | ETIM 8 | EC001456 - Relay socket |
| ETIM 9 | EC001456 - Relay socket | eClass | V11.0 : 27371603 |
| UNSPSC | 39122335 | E-Number (Norway) | 4187814 |
| Manufacturer ID | 1SVR405650R0310 |
Specifications may be subject to change without notice
