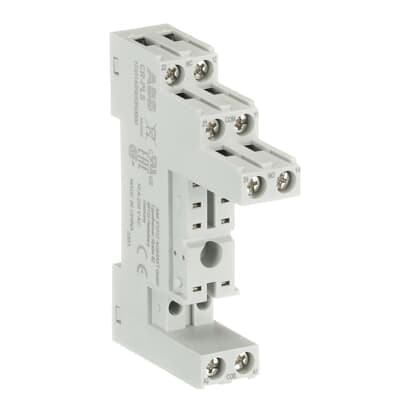

CR-PLS
Product ID:86594
Updated: 2026/4/3
Key Features
- 1Ensure safety isolation for CR-P relays with 1 or 2 c/o contacts. 2、Secure reliable connections with screw connection terminals. 3、Enhance functionality with pluggable modules like polarity protection. 4、Construct durable units from PA 6+GF material with CuZn33 contacts. 5、Meet EU Directive and RoHS standards for environmental compliance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 15.5 mm | Product Net Height | 61 mm |
| Product Net Depth / Length | 75 mm | Product Net Weight | 0.045 kg |
| Function | Accessory for interface relays CR-P | Sub-Function | Socket for PCB relays |
| Sub-Function 2 | Logical socket for pcb relay 1 c/o or 2 c/o with protective separation | Rated Operational Voltage | 250 V |
| Output | none | Terminal Type | Screw Terminals |
| Rated Operational Current AC-12 (Ie) | (230 V) 2 A | Rated Insulation Voltage (Ui) | 5 V |
| Mounting Position | 1 | Standards | CAN/CSA C22.2 No.14 IEC/EN 63000 IEC/EN 61984 UL 508 |
| Connecting Capacity Main Circuit UL/CSA | Flexible with Ferrule 2x 20-16 AWG Rigid 2x 20-14 AWG Stranded 2 x 20-14 AWG | Flammability According to UL94 | V-0 |
| Ambient Air Temperature | Operation -40 ... +70 °C Storage -40 ... +70 °C | Maximum Operating Altitude Permissible | 2000 m |
| Object Classification Code | K | ETIM 7 | EC001456 - Relay socket |
| ETIM 8 | EC001456 - Relay socket | ETIM 9 | EC001456 - Relay socket |
| eClass | V11.0 : 27371603 | UNSPSC | 39122335 |
| E-Number (Finland) | 2712755 | E-Number (Norway) | 4187346 |
| E-Number (Sweden) | 4005315 | Manufacturer ID | 1SVR405650R0000 |
Specifications may be subject to change without notice
