ABBIntermediate relay
In Stock

CR-S012/024VADC1SS

Product ID:87247
Updated: 2026/4/3

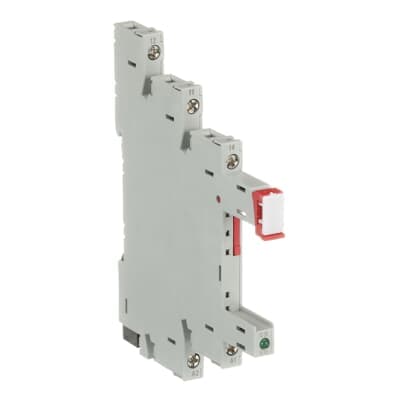

ABB CR-S012/024VADC1SS

Key Features

  • 1Operate with 12-24VAC/DC for broad industrial application. 2、Secure connections via robust screw terminals for enhanced durability. 3、Withstand temperatures from -40°C to +70°C for diverse environments. 4、Comply with EU RoHS and international safety standards. 5、Integrate simply with interface relays to reduce setup complexity.
Product Details
CR-S012/024VADC1SS
ABB

Technical Specifications

Detailed engineering parameters

ParameterValueParameterValue
Product Net Width
6.3 mm
Product Net Height
76.4 mm
Product Net Depth / Length
88.5 mm
Product Net Weight
0.025 kg
Function
Accessory for interface relays CR-S
Sub-Function
Socket
Rated Control Supply Voltage (Us)
12 ... 24 V AC/DC
Rated Operational Voltage
250 V AC
Terminal Type
Screw Terminals
Rated Operational Current AC-12 (Ie)
(230 V) 6 A
Rated Insulation Voltage (Ui)
250 V
Degree of Protection
IP20 Terminals IP20
Connecting Capacity
Flexible 2.5 mm² Rigid 2.5 mm²
Tightening Torque
0.5 N·m
Wire Stripping Length
7 mm
Mounting Position
1
Mounting on DIN Rail
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards
CAN/CSA C22.2 No.14 IEC/EN 63000 IEC/EN 61984 UL 508
Connecting Capacity UL/CSA
Flexible 14 AWG Rigid 14 AWG
Tightening Torque UL/CSA
4.42 in·lb
Connecting Capacity Main Circuit UL/CSA
Flexible with Ferrule 2x 20 ... 18 AWG Rigid 2x 20-16 AWG Stranded 2 x 20-16 AWG
Flammability According to UL94
V-0
Ambient Air Temperature
Operation -40 ... +70 °C Storage -40 ... +85 °C
Maximum Operating Altitude Permissible
Without Derating 2000 m
Object Classification Code
K
ETIM 7
EC001456 - Relay socket
ETIM 8
EC001456 - Relay socket
ETIM 9
EC001456 - Relay socket
eClass
V11.0 : 27371603
UNSPSC
39122335
E-Number (Finland)
2712362
E-Number (Sweden)
4001392
Manufacturer ID
1SVR405521R3100

Specifications may be subject to change without notice
