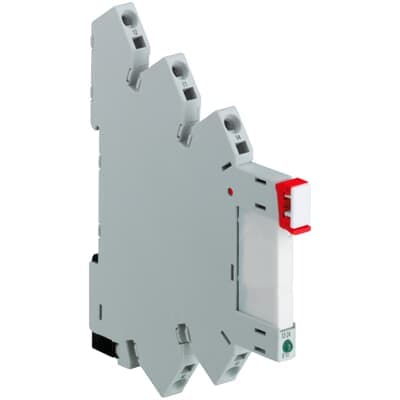

CR-S012VADC1CRZ
Product ID:91608
Updated: 2026/7/14
Key Features
- 1Ensure reliable performance with robust isolation and high-quality materials.
- 2Achieve versatile installation using 12-24V AC/DC control supply voltages.
- 3Simplify integration with easy DIN rail mounting.
- 4Save panel space with compact 88.3 x 6.3 x 70.9 mm dimensions.
- 5Meet IEC/EN 61984 and EN 60529 standards for safety and protection.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 6.2 mm | Product Net Height | 76.6 mm |
| Product Net Depth / Length | 94.7 mm | Product Net Weight | 0.03 kg |
| Function | Fully assembled interface relay CR-S | Sub-Function | Relay with standard contacts |
| Rated Control Supply Voltage (Us) | 12 V AC/DC | Output | 1 c/o (SPDT) contact |
| Output Signal | 250 V / 6 A | Terminal Type | Spring Terminals |
| Rated Operational Current AC-12 (Ie) | (230 V) 6 A | Rated Operational Current DC-12 (Ie) | (24 V) 6 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 1 A | Degree of Protection | Terminals IP20 |
| Connecting Capacity | Flexible 2.5 mm² Rigid 2.5 mm² | Tightening Torque | 0.5 N·m |
| Wire Stripping Length | 7 mm | Mounting on DIN Rail | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Standards | CAN/CSA C22.2 No.14 IEC/EN 63000 IEC/EN 61810-1 IEC/EN 61984 UL 508 | Connecting Capacity UL/CSA | Flexible 14 AWG Rigid 14 AWG |
| Tightening Torque UL/CSA | 4.42 in·lb | Ambient Air Temperature | Operation -40 ... +70 °C Storage 0 ... +40 °C |
| Object Classification Code | K | ETIM 7 | EC001437 - Switching relay |
| ETIM 8 | EC001437 - Switching relay | ETIM 9 | EC001437 - Switching relay |
| eClass | V11.0 : 27371601 | UNSPSC | 39122331 |
| Manufacturer ID | 1SVR405541R2210 |
Specifications may be subject to change without notice
