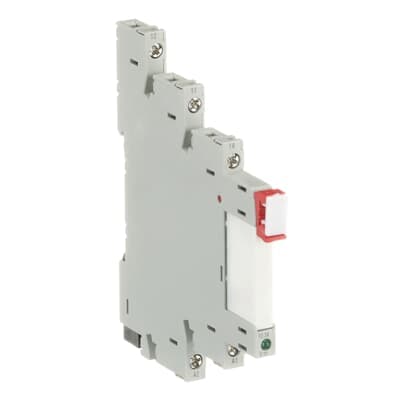

CR-S024VADC1CRS
Product ID:83864
Updated: 2026/4/3
Key Features
- 1Handle loads up to 6A for robust switching. 2、Operate with versatile 24V AC or DC coils. 3、Mount easily on standard DIN rails. 4、Utilize SPDT contacts for precise control. 5、Deploy the fully assembled relay immediately.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 6.3 mm | Product Net Height | 76.4 mm |
| Product Net Depth / Length | 88.5 mm | Product Net Weight | 0.03 kg |
| Function | Fully assembled interface relay CR-S | Sub-Function | Relay with standard contacts |
| Rated Control Supply Voltage (Us) | 24 V AC/DC | Output | 1 c/o (SPDT) contact |
| Output Signal | 250 V / 6 A | Terminal Type | Screw Terminals |
| Rated Operational Current AC-12 (Ie) | (230 V) 6 A | Rated Operational Current DC-12 (Ie) | (24 V) 6 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 1 A | Degree of Protection | Terminals IP20 |
| Connecting Capacity | Flexible 2.5 mm² Rigid 2.5 mm² | Tightening Torque | 0.5 N·m |
| Wire Stripping Length | 7 mm | Mounting on DIN Rail | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Standards | CAN/CSA C22.2 No.14 IEC/EN 63000 IEC/EN 61810-1 IEC/EN 61984 UL 508 | Connecting Capacity UL/CSA | Flexible 14 AWG Rigid 14 AWG |
| Tightening Torque UL/CSA | 4.42 in·lb | Ambient Air Temperature | Operation -40 ... +70 °C Storage 0 ... +40 °C |
| Object Classification Code | K | ETIM 7 | EC001437 - Switching relay |
| ETIM 8 | EC001437 - Switching relay | ETIM 9 | EC001437 - Switching relay |
| eClass | V11.0 : 27371601 | UNSPSC | 39122331 |
| E-Number (Finland) | 2712370 | E-Number (Sweden) | 4001400 |
| Manufacturer ID | 1SVR405541R3110 |
Specifications may be subject to change without notice
