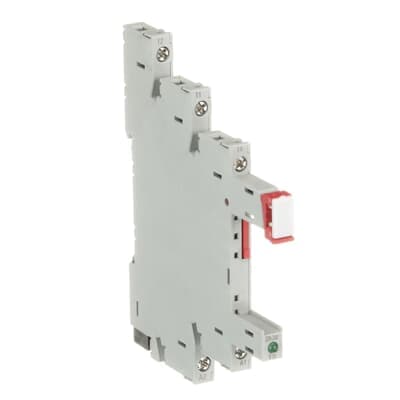

CR-S220/240VADC1SS
Product ID:87242
Updated: 2026/7/14
Key Features
- 1Ensure compatibility with 220-240VAC/DC and 250VAC control supply.
- 2Connect flexible and rigid 14 AWG wires reliably.
- 3Install and maintain easily with screw terminals.
- 4Operate reliably from -40°C to +55°C.
- 5Meet EU RoHS standards with CSA and cURus certification.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 6.3 mm | Product Net Height | 76.4 mm |
| Product Net Depth / Length | 88.5 mm | Product Net Weight | 0.025 kg |
| Function | Accessory for interface relays CR-S | Sub-Function | Socket |
| Rated Control Supply Voltage (Us) | 220 ... 240 V AC/DC | Rated Operational Voltage | 250 V AC |
| Terminal Type | Screw Terminals | Rated Operational Current AC-12 (Ie) | (230 V) 6 A |
| Rated Insulation Voltage (Ui) | 250 V | Degree of Protection | IP20 Terminals IP20 |
| Connecting Capacity | Flexible 2.5 mm² Rigid 2.5 mm² | Tightening Torque | 0.5 N·m |
| Wire Stripping Length | 7 mm | Mounting Position | 1 |
| Mounting on DIN Rail | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 | Standards | CAN/CSA C22.2 No.14 IEC/EN 63000 IEC/EN 61984 UL 508 |
| Connecting Capacity UL/CSA | Flexible 14 AWG Rigid 14 AWG | Tightening Torque UL/CSA | 4.42 in·lb |
| Connecting Capacity Main Circuit UL/CSA | Flexible with Ferrule 2x 20 ... 18 AWG Rigid 2x 20-16 AWG Stranded 2 x 20-16 AWG | Flammability According to UL94 | V-0 |
| Ambient Air Temperature | Operation -40 ... +55 °C Storage -40 ... +85 °C | Maximum Operating Altitude Permissible | Without Derating 2000 m |
| Object Classification Code | K | ETIM 7 | EC001456 - Relay socket |
| ETIM 8 | EC001456 - Relay socket | ETIM 9 | EC001456 - Relay socket |
| eClass | V11.0 : 27371603 | UNSPSC | 39122335 |
| E-Number (Finland) | 2712368 | E-Number (Sweden) | 4001398 |
| Manufacturer ID | 1SVR405521R7100 |
Specifications may be subject to change without notice
