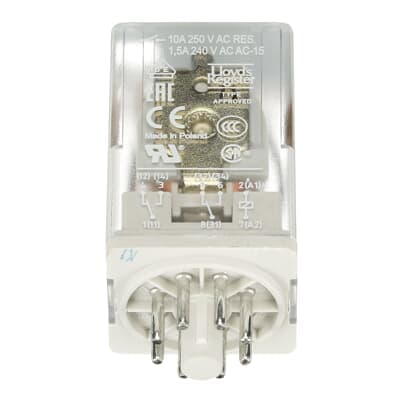

CR-U012DC2L
Product ID:86546
Updated: 2026/4/3
Key Features
- 1Operate with a 12VDC rated control supply voltage. 2、Feature 2 c/o (SPDT) output contacts rated at 250V / 10A. 3、Include an integrated blue test button for manual actuation. 4、Equip with an integrated LED for clear visual indication. 5、Comply with UL 508, CE, EAC, VDE, and RoHS standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 35 mm | Product Net Height | 54.4 mm |
| Product Net Depth / Length | 35 mm | Product Net Weight | 0.083 kg |
| Function | Pluggable universal interface relay CR-U | Sub-Function | Relay with built in LED |
| Rated Control Supply Voltage (Us) | 12 V DC | Rated Operational Voltage | 250 V AC |
| Output | 2 c/o (SPDT) contacts | Output Signal | 250 V / 10 A |
| Terminal Type | Pin | Rated Operational Current AC-12 (Ie) | (230 V) 10 A |
| Rated Operational Current AC-15 (Ie) | (120 V) 3 A (230 V) 1.5 A | Rated Operational Current DC-12 (Ie) | (24 V) 10 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 2 A (250 V) 0.1 A | Rated Insulation Voltage (Ui) | 250 V |
| Degree of Protection | IP40 | Mounting Position | 1 |
| Standards | CAN/CSA C22.2 No.14 IEC/EN 63000 IEC/EN 61810-1 UL 508 | Maximum Operating Voltage UL/CSA | 300 V AC |
| Contact Rating UL/CSA | B300 | Pilot Duty UL/CSA | B300 |
| Flammability According to UL94 | HB | Ambient Air Temperature | Operation -40 ... +70 °C Storage -40 ... +85 °C |
| Maximum Operating Altitude Permissible | Without Derating 2000 m | Object Classification Code | K |
| ETIM 7 | EC001437 - Switching relay | ETIM 8 | EC001437 - Switching relay |
| ETIM 9 | EC001437 - Switching relay | eClass | V11.0 : 27371601 |
| UNSPSC | 39122331 | E-Number (Finland) | 2712760 |
| E-Number (Norway) | 4187474 | Manufacturer ID | 1SVR405621R4100 |
Specifications may be subject to change without notice
