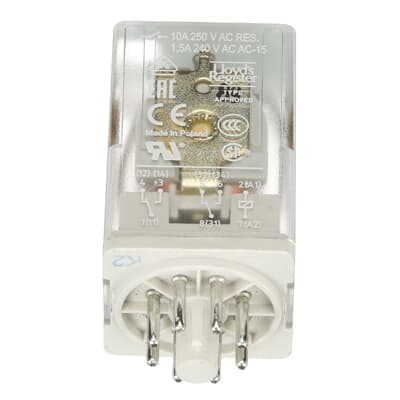

CR-U048DC2
Product ID:87469
Updated: 2026/4/3
Key Features
- 1Ensure universal compatibility with seamless snap-on DIN rail mounting. 2、Rely on robust circular pin terminals for tough, repetitive-use applications. 3、Simplify testing with an integrated button for manual actuation. 4、Monitor status via an integrated LED for visual coil energization indication. 5、Meet standards like IEC/EN 63000 and UL 508 for high reliability.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 35 mm | Product Net Height | 54.4 mm |
| Product Net Depth / Length | 35 mm | Product Net Weight | 0.083 kg |
| Function | Pluggable universal interface relay CR-U | Sub-Function | Relay w/o built in LED |
| Rated Control Supply Voltage (Us) | 48 V DC | Rated Operational Voltage | 250 V AC |
| Output | 2 c/o (SPDT) contacts | Output Signal | 250 V / 10 A |
| Terminal Type | Pin | Rated Operational Current AC-12 (Ie) | (230 V) 10 A |
| Rated Operational Current AC-15 (Ie) | (120 V) 3 A (230 V) 1.5 A | Rated Operational Current DC-12 (Ie) | (24 V) 10 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 2 A (250 V) 0.1 A | Rated Insulation Voltage (Ui) | 250 V |
| Degree of Protection | IP40 | Mounting Position | 1 |
| Standards | CAN/CSA C22.2 No.14 IEC/EN 63000 IEC/EN 61810-1 UL 508 | Maximum Operating Voltage UL/CSA | 300 V AC |
| Pilot Duty UL/CSA | B300 | Flammability According to UL94 | HB |
| Ambient Air Temperature | Operation -40 ... +70 °C Storage -40 ... +85 °C | Maximum Operating Altitude Permissible | Without Derating 2000 m |
| Object Classification Code | K | ETIM 7 | EC001437 - Switching relay |
| ETIM 8 | EC001437 - Switching relay | ETIM 9 | EC001437 - Switching relay |
| eClass | V11.0 : 27371601 | UNSPSC | 39122331 |
| E-Number (Finland) | 2712775 | E-Number (Norway) | 4187456 |
| Manufacturer ID | 1SVR405621R6000 |
Specifications may be subject to change without notice
