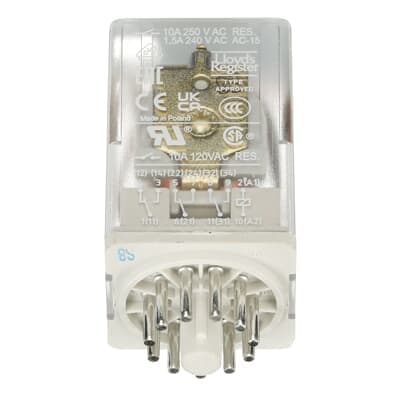

CR-U120AC3L
Product ID:86589
Updated: 2026/7/15
Key Features
- 1Support 10 different supply voltages including DC and AC versions.
- 2Ensure durability with cadmium-free contact material for reliability.
- 3Test manually using the integrated button to lock output contacts.
- 4Upgrade easily with pluggable modules for polarity and overvoltage protection.
- 5Save panel space with compact 35 x 35 x 54.4 mm dimensions.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 35 mm | Product Net Height | 54.4 mm |
| Product Net Depth / Length | 35 mm | Product Net Weight | 0.083 kg |
| Function | Pluggable universal interface relay CR-U | Sub-Function | Relay with built in LED |
| Rated Control Supply Voltage (Us) | 120 V AC | Rated Operational Voltage | 250 V AC |
| Rated Frequency (f) | 50 / 60 Hz | Output | 3 c/o (SPDT) contacts |
| Output Signal | 250 V / 10 A | Terminal Type | Pin |
| Rated Operational Current AC-12 (Ie) | (230 V) 10 A | Rated Operational Current AC-15 (Ie) | (120 V) 3 A (230 V) 1.5 A |
| Rated Operational Current DC-12 (Ie) | (24 V) 10 A | Rated Operational Current DC-13 (Ie) | (24 V) 2 A (250 V) 0.1 A |
| Rated Insulation Voltage (Ui) | 250 V | Degree of Protection | IP40 |
| Mounting Position | 1 | Standards | CAN/CSA C22.2 No.14 IEC/EN 63000 IEC/EN 61810-1 UL 508 |
| Maximum Operating Voltage UL/CSA | 300 V AC | Pilot Duty UL/CSA | B300 |
| Flammability According to UL94 | HB | Ambient Air Temperature | Operation -40 ... +55 °C Storage -40 ... +85 °C |
| Maximum Operating Altitude Permissible | Without Derating 2000 m | Object Classification Code | K |
| ETIM 7 | EC001437 - Switching relay | ETIM 8 | EC001437 - Switching relay |
| ETIM 9 | EC001437 - Switching relay | eClass | V11.0 : 27371601 |
| UNSPSC | 39122331 | E-Number (Finland) | 2712790 |
| E-Number (Norway) | 4187492 | Manufacturer ID | 1SVR405622R2100 |
Specifications may be subject to change without notice
