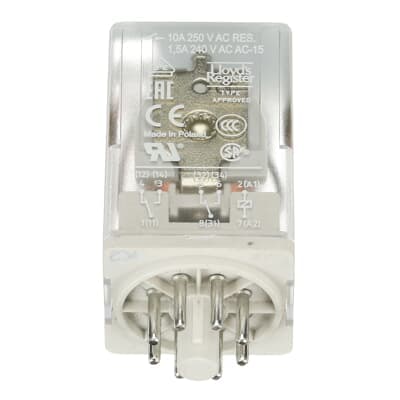

CR-U220DC2
Product ID:87210
Updated: 2026/4/3
Key Features
- 1Ensure universal compatibility with 220V DC control and 250V/10A output. 2、Rely on robust design featuring durable circular pin terminals. 3、Test easily using the integrated manual actuation button. 4、Monitor status visually via the integrated LED for coil energization. 5、Expand functionality with available sockets, modules, and markers.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 35 mm | Product Net Height | 54.4 mm |
| Product Net Depth / Length | 35 mm | Product Net Weight | 0.083 kg |
| Function | Pluggable universal interface relay CR-U | Sub-Function | Relay w/o built in LED |
| Rated Control Supply Voltage (Us) | 220 V DC | Rated Operational Voltage | 250 V AC |
| Output | 2 c/o (SPDT) contacts | Output Signal | 250 V / 10 A |
| Terminal Type | Pin | Rated Operational Current AC-12 (Ie) | (230 V) 10 A |
| Rated Operational Current AC-15 (Ie) | (120 V) 3 A (230 V) 1.5 A | Rated Operational Current DC-12 (Ie) | (24 V) 10 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 2 A (250 V) 0.1 A | Rated Insulation Voltage (Ui) | 250 V |
| Degree of Protection | IP40 | Mounting Position | 1 |
| Standards | CAN/CSA C22.2 No.14 IEC/EN 63000 IEC/EN 61810-1 UL 508 | Maximum Operating Voltage UL/CSA | 300 V AC |
| Pilot Duty UL/CSA | B300 | Flammability According to UL94 | HB |
| Ambient Air Temperature | Operation -40 ... +70 °C Storage -40 ... +85 °C | Maximum Operating Altitude Permissible | Without Derating 2000 m |
| Object Classification Code | K | ETIM 7 | EC001437 - Switching relay |
| ETIM 8 | EC001437 - Switching relay | ETIM 9 | EC001437 - Switching relay |
| eClass | V11.0 : 27371601 | UNSPSC | 39122331 |
| E-Number (Finland) | 2712791 | E-Number (Norway) | 4187458 |
| Manufacturer ID | 1SVR405621R9000 |
Specifications may be subject to change without notice
