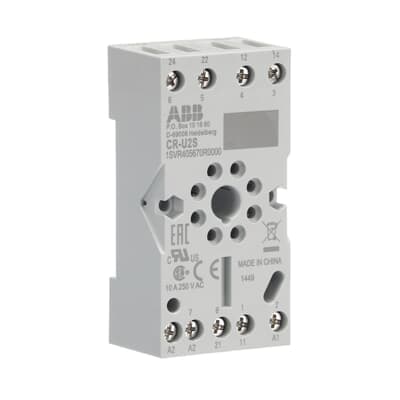

CR-U2S
Product ID:83266
Updated: 2026/7/14
Key Features
- 1Ensure universal compatibility with CR-U relays featuring 2 c/o (SPDT) contacts.
- 2Simplify installation using reliable screw connection terminals.
- 3Achieve high reliability with overload-proof design against current/voltage peaks.
- 4Monitor operations with standard mechanical status indication.
- 5Expand functionality with pluggable modules, holders, and markers.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 38 mm | Product Net Height | 26 mm |
| Product Net Depth / Length | 75 mm | Product Net Weight | 0.065 kg |
| Function | Accessory for interface relays CR-U | Sub-Function | Socket for universal relays |
| Sub-Function 2 | Socket for universal relay 2 c/o and module | Rated Operational Voltage | 250 V |
| Output | none | Terminal Type | Screw Terminals |
| Rated Operational Current AC-12 (Ie) | (230 V) 10 A | Rated Insulation Voltage (Ui) | 2 V |
| Mounting Position | 1 | Standards | CAN/CSA C22.2 No.14 IEC/EN 63000 IEC/EN 61984 UL 508 |
| Connecting Capacity Main Circuit UL/CSA | Flexible with Ferrule 2x 20-16 AWG Rigid 2x 20-14 AWG Stranded 2 x 20-14 AWG | Flammability According to UL94 | V-0 |
| Ambient Air Temperature | Operation -40 ... +70 °C Storage -40 ... +70 °C | Maximum Operating Altitude Permissible | 2000 m |
| Object Classification Code | K | ETIM 7 | EC001456 - Relay socket |
| ETIM 8 | EC001456 - Relay socket | ETIM 9 | EC001456 - Relay socket |
| eClass | V11.0 : 27371603 | UNSPSC | 39122335 |
| E-Number (Finland) | 2712799 | E-Number (Norway) | 4187494 |
| E-Number (Sweden) | 4005435 | Manufacturer ID | 1SVR405670R0000 |
Specifications may be subject to change without notice
