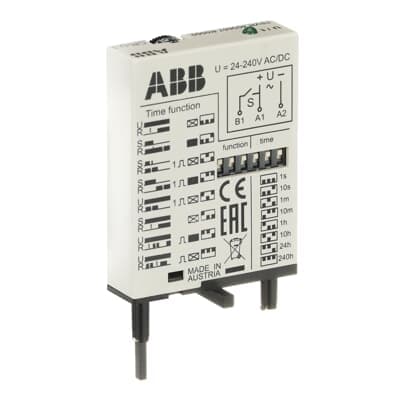

CR-U T
Product ID:84860
Updated: 2026/4/4
Key Features
- 1Provide several timing functions for various industrial applications. 2、Ensure flexibility with 24-240V AC/DC compatibility. 3、Plug into CR-U2S and CR-U3S sockets for quick installation. 4、Enhance reliability with cadmium-free contacts and LED indication. 5、Meet international standards with global ABB support.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 35 mm | Product Net Height | 47 mm |
| Product Net Depth / Length | 12 mm | Product Net Weight | 0.014 kg |
| Function | Accessory for interface relays CR-U | Sub-Function | Pluggable function module for universal relay sockets |
| Sub-Function 2 | Multifunction time module | Rated Control Supply Voltage (Us) | 24 ... 240 V AC/DC |
| Output | none | Output Signal | none |
| Standards | CAN/CSA C22.2 No.14 IEC/EN 63000 IEC/EN 61812-1 | Object Classification Code | K |
| ETIM 7 | EC002586 - Accessories for switching relay | ETIM 8 | EC002586 - Accessories/spare parts for switching relay |
| ETIM 9 | EC002586 - Accessories/spare parts for switching relay | eClass | V11.0 : 27371692 |
| UNSPSC | 39122331 | E-Number (Finland) | 2712515 |
| E-Number (Norway) | 4187516 | Manufacturer ID | 1SVR405667R0000 |
Specifications may be subject to change without notice
