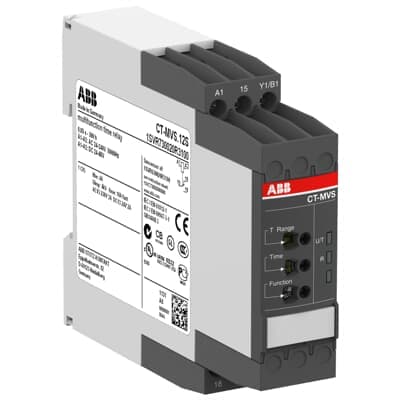

CT-MVS.12P
Product ID:85250
Updated: 2026/4/3
Key Features
- 1Access 10 timing functions including ON-delay and OFF-delay. 2、Achieve high repeat accuracy of Δt <± 0.2%. 3、Connect easily with maintenance-free push-in terminals. 4、Operate across 24-48V DC and 24-240V AC systems. 5、Ensure durability with robust IP50/20 protection.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 22.5 mm | Product Net Height | 85.6 mm |
| Product Net Depth / Length | 103.7 mm | Product Net Weight | 0.102 kg |
| Timer Relay Type | ON-Delay OFF-Delay Impulse ON Impulse OFF Flasher Starting with ON or OFF Pulse Former ON / OFF Function Accumulative ON-Delay Symmetrical ON- and OFF-Delay | Time Range | 0.05 s ... 300 h |
| Rated Control Supply Voltage (Us) | 24 ... 240 V AC 24 ... 48 V DC | Rated Operational Voltage | Auxiliary Circuit 250 V |
| Rated Frequency (f) | 50 / 60 Hz DC | Output | 1 c/o (SPDT) contact |
| Terminal Type | Screwless Terminals | Rated Operational Current AC-12 (Ie) | (230 V) 4 A |
| Rated Operational Current AC-15 (Ie) | (230 V) 3 A | Rated Operational Current DC-12 (Ie) | (24 V) 4 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 2 A | Minimum Switching Capacity | 12 V 100 mA |
| Rated Impulse Withstand Voltage (Uimp) | Input Circuit 4 kV Output Circuit 1 / Output Circuit 2 4 kV | Rated Insulation Voltage (Ui) | Input Circuit / Output Circuit 500 V Output Circuit 1 / Output Circuit 2 300 V |
| Degree of Protection | Housing IP50 Terminals IP20 | Overvoltage Category | III |
| Pollution Degree | 3 | Short-Circuit Protective Devices | Output Circuit NC - F Type Fuses 6 A Output Circuit NO - F Type Fuses 10 A |
| Electrical Durability | AC-12 100000 cycle | Mechanical Durability | 30000000 cycle |
| Connecting Capacity | Flexible with Ferrule 2x 0.5 ... 1.5 mm² Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm² Flexible 2x 0.5 ... 1.5 mm² Rigid 2x 0.5 ... 1.5 mm² | Wire Stripping Length | 8 mm |
| Mounting Position | 1 ... 6 | Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Standards | CAN/CSA C22.2 No.14 IEC/EN 63000 IEC/EN 61812-1 UL 508 | Maximum Operating Voltage UL/CSA | Output Circuit 300 V AC |
| Contact Rating UL/CSA | B300 | Connecting Capacity UL/CSA | Flexible 2x 18-16 AWG Rigid 2x 20-16 AWG |
| Pilot Duty UL/CSA | B300 | Flammability According to UL94 | V-0 |
| Ambient Air Temperature | Operation -25 ... +60 °C Storage -40 ... +85 °C | Maximum Operating Altitude Permissible | Without Derating 2000 m |
| Object Classification Code | K | ETIM 7 | EC001439 - Timer relay |
| ETIM 8 | EC001439 - Timer relay | ETIM 9 | EC001439 - Timer relay |
| eClass | V11.0 : 27371605 | UNSPSC | 39122329 |
| E-Number (Finland) | 2712216 | E-Number (Norway) | 4187937 |
| E-Number (Sweden) | 4033128 | Manufacturer ID | 1SVR740020R3100 |
Specifications may be subject to change without notice
