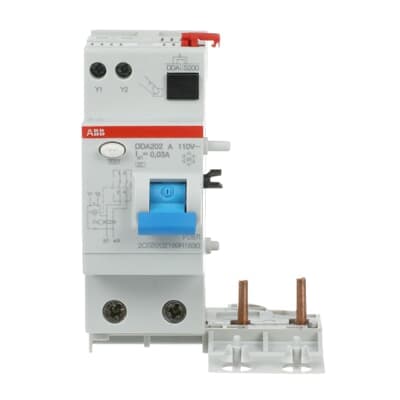

DDA202 A-63/0.03 110V
Product ID:76309
Updated: 2026/4/3
Key Features
- 1Equip with remote tripping terminals for enhanced safety. 2、Utilize the System pro M compact design for space-saving installation. 3、Rely on the 63A rating for demanding industrial and naval use. 4、Select from 110V or 400V versions for system compatibility. 5、Meet IEC EN 61009 and IEC 60755 standards for guaranteed performance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Standards | IEC 61009 Ann. G | Type of Residual Current | Type A |
| Rated Voltage (Ur) | 230...230 V | Rated Operational Voltage | 230 V |
| Rated Insulation Voltage (Ui) | 500 V | Test Voltage (Ut) | 110 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV | Rated Current (In) | 63 A |
| Rated Residual Current | 30 mA | Leakage Current Type | A |
| Rated Frequency (f) | 50 ⦠60 Hz | Power Loss | 5 W |
| Power Supply Connection | Arbitrary | Electrical Endurance | 10000 cycle |
| Number of Poles | 2 | Operating Characteristic | Instantaneous |
| Options Provided | Suitable for 110V applications | Connecting Capacity | Rigid 25 ... 25 mm² Flexible 25 ... 25 mm² |
| Ambient Temperature | -25...55 °C | Ambient Air Temperature | Operation -25...55 °C |
| Degree of Protection | IP2X | Resistance to Vibrations | 20 Cycles with Load 0.8 In: 1g or 1mm 50 ⦠150 ⦠5 Hz |
| Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms | Environmental Information | Refer to RoHS |
| Short-Circuit Current Rating (SCCR) | 0.03 ... 0.03 A | Product Net Width | 70 mm |
| Product Net Height | 93 mm | Product Net Depth / Length | 76 mm |
| Product Net Weight | 360 g | ETIM 8 | EC002297 - Residual current circuit breaker (RCCB) module |
| ETIM 9 | EC002297 - Residual current circuit breaker (RCCB) module | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer | CN8 | 85363030 |
| eClass | V11.0 : 27142210 | Object Classification Code | F |
| Manufacturer ID | 2CSB202199R1630 |
Specifications may be subject to change without notice
