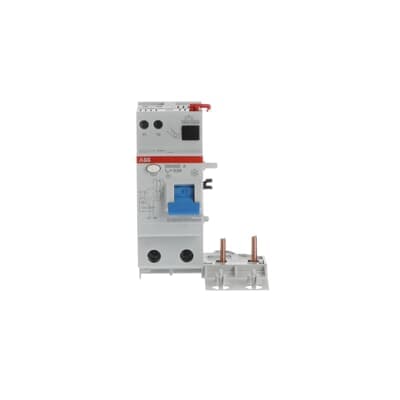

DDA202 A-63/0.5
Product ID:69333
Updated: 2026/4/4
Key Features
- 1Ensure safety by detecting and interrupting earth fault currents. 2、Provide comprehensive protection against indirect and direct contact hazards. 3、Offer sensitive 30 mA protection for direct contact safety. 4、Suit residential, commercial, and industrial electrical settings. 5、Meet IEC/EN 61009 standards for proven reliability.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Standards | IEC/EN 61009 Ann. G | Type of Residual Current | Type A |
| Rated Voltage (Ur) | 230/400 V | Rated Operational Voltage | 230 V |
| Rated Insulation Voltage (Ui) | 500 V | Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Rated Current (In) | 63 A | Rated Residual Current | 500 mA |
| Leakage Current Type | A | Rated Frequency (f) | 50 ⦠60 Hz |
| Power Loss | 5 W | Power Supply Connection | Arbitrary |
| Electrical Endurance | 10000 cycle | Number of Poles | 2 |
| Operating Characteristic | Instantaneous | Connecting Capacity | Rigid 25 ... 25 mm² Flexible 25 ... 25 mm² |
| Ambient Temperature | -25...55 °C | Ambient Air Temperature | Operation -25...55 °C |
| Degree of Protection | IP2X | Resistance to Vibrations | 20 Cycles with Load 0.8 In: 1g or 1mm 50 ⦠150 ⦠5 Hz |
| Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms | Environmental Information | Refer to RoHS |
| Short-Circuit Current Rating (SCCR) | 0.5 ... 0.5 A | Product Net Width | 70 mm |
| Product Net Height | 93 mm | Product Net Depth / Length | 76 mm |
| Product Net Weight | 210 g | ETIM 8 | EC002297 - Residual current circuit breaker (RCCB) module |
| ETIM 9 | EC002297 - Residual current circuit breaker (RCCB) module | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer | CN8 | 85363030 |
| eClass | V11.0 : 27142210 | Object Classification Code | F |
| Manufacturer ID | 2CSB202101R4630 |
Specifications may be subject to change without notice
