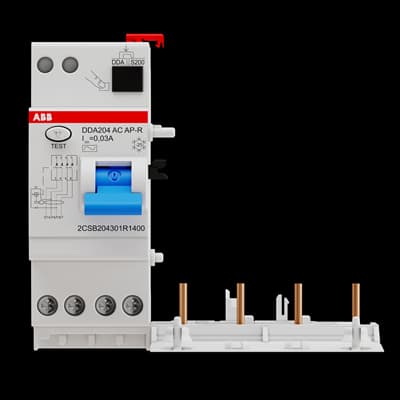

DDA204 AC-40/0.03 AP-R
Product ID:76829
Updated: 2026/4/3
Key Features
- 1Protect against sinusoidal AC earth fault currents. 2、Achieve instantaneous tripping with high disturbance immunity. 3、Integrate seamlessly with ABB S200 series MCBs. 4、Comply with IEC/EN 61009 Annex G standards. 5、Utilize a compact design for space-saving installations.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Standards | EN 61009 Ann. G | Type of Residual Current | Type AC |
| Rated Operational Voltage | 230/400 V | Rated Current (In) | 40 A |
| Rated Residual Current | 30 mA | Rated Frequency (f) | 50 ⦠60 Hz |
| Power Loss | 4.8 W | Number of Poles | 4 |
| Operating Characteristic | Instantaneous (APR High Immunity) | Resistance to Vibrations | 20 Cycles with Load 0.8 In: 1g or 1mm 50 ⦠150 ⦠5 Hz |
| Resistance to Shock acc. to IEC 60068-2-27 | 25g / 2 shocks / 13 ms | Environmental Information | document not needed |
| Product Net Width | 105 mm | Product Net Height | 93 mm |
| Product Net Depth / Length | 76 mm | Product Net Weight | 0.290 kg |
| ETIM 8 | EC002297 - Residual current circuit breaker (RCCB) module | ETIM 9 | EC002297 - Residual current circuit breaker (RCCB) module |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Consumer |
| CN8 | 85363030 | eClass | V11.0 : 27142210 |
| Object Classification Code | F | Manufacturer ID | 2CSB204301R1400 |
Specifications may be subject to change without notice
