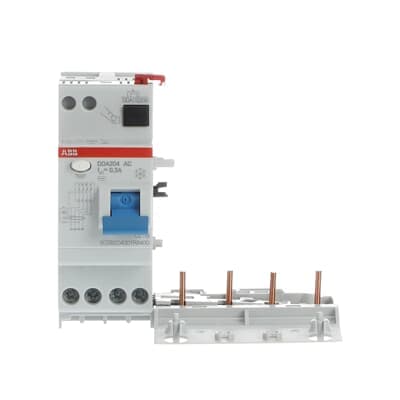

DDA204 AC-40/0.3
Product ID:69289
Updated: 2026/4/3
Key Features
- 1Assure protection against sinusoidal alternating earth fault currents and indirect contacts. 2、Provide additional direct contact protection with 30 mA high sensitivity. 3、Suit versatile residential, commercial, and industrial electrical applications. 4、Meet IEC/EN 61009 Ann. G standards for guaranteed safety and compliance. 5、Install easily with a compact, lightweight design for space-saving panels.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Standards | IEC/EN 61009 Ann. G | Type of Residual Current | Type AC |
| Rated Voltage (Ur) | 230/400 V | Rated Operational Voltage | 230/400 V |
| Rated Insulation Voltage (Ui) | 500 V | Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Rated Current (In) | 40 A | Rated Residual Current | 300 mA |
| Leakage Current Type | AC | Rated Frequency (f) | 50 ⦠60 Hz |
| Power Loss | 4.8 W | Power Supply Connection | Arbitrary |
| Electrical Endurance | 10000 cycle | Number of Poles | 4 |
| Operating Characteristic | Instantaneous | Options Provided | - |
| Connecting Capacity | Rigid 16 ... 16 mm² Flexible 16 ... 16 mm² | Ambient Temperature | -25...55 °C |
| Ambient Air Temperature | Operation -25...55 °C | Degree of Protection | IP2X |
| Resistance to Vibrations | 20 Cycles with Load 0.8 In: 1g or 1mm 50 ⦠150 ⦠5 Hz | Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms |
| Environmental Information | Refer to RoHS | Short-Circuit Current Rating (SCCR) | 0.3 ... 0.3 A |
| Product Net Width | 105 mm | Product Net Height | 93 mm |
| Product Net Depth / Length | 76 mm | Product Net Weight | 173 g |
| Dimension Diagram | 9AKK106930A3989 | ETIM 8 | EC002297 - Residual current circuit breaker (RCCB) module |
| ETIM 9 | EC002297 - Residual current circuit breaker (RCCB) module | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer | CN8 | 85363030 |
| eClass | V11.0 : 27142210 | Object Classification Code | F |
| Manufacturer ID | 2CSB204001R3400 |
Specifications may be subject to change without notice
