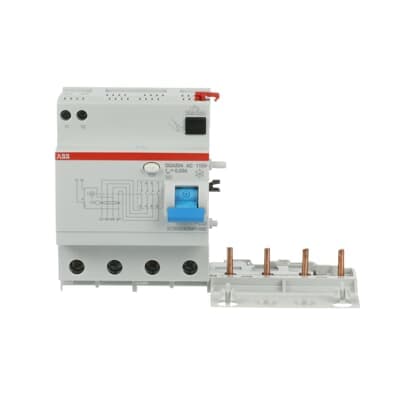

DDA204 AC-63/0.03 110V
Product ID:69122
Updated: 2026/7/14
Key Features
- 1Enhance protection with 0.03A high sensitivity.
- 2Suit naval and industrial 110-245V applications.
- 3Enable safety via terminals for remote tripping.
- 4Install efficiently using compact System pro M design.
- 5Ensure reliability meeting IEC EN 61009 standards.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Standards | IEC 61009 Ann. G | Type of Residual Current | Type AC |
| Rated Voltage (Ur) | 230...400 V | Rated Operational Voltage | 230/400 V |
| Rated Insulation Voltage (Ui) | 500 V | Test Voltage (Ut) | 110 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV | Rated Current (In) | 63 A |
| Rated Residual Current | 30 mA | Leakage Current Type | AC |
| Rated Frequency (f) | 50 ⦠60 Hz | Power Loss | 7.6 W |
| Power Supply Connection | Arbitrary | Electrical Endurance | 10000 cycle |
| Number of Poles | 4 | Operating Characteristic | Instantaneous |
| Options Provided | Suitable for 110V applications | Connecting Capacity | Rigid 25 ... 25 mm² Flexible 25 ... 25 mm² |
| Ambient Temperature | -25...55 °C | Ambient Air Temperature | Operation -25...55 °C |
| Degree of Protection | IP2X | Resistance to Vibrations | 20 Cycles with Load 0.8 In: 1g or 1mm 50 ⦠150 ⦠5 Hz |
| Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms | Environmental Information | Refer to RoHS |
| Short-Circuit Current Rating (SCCR) | 0.03 ... 0.03 A | Product Net Width | 140 mm |
| Product Net Height | 93 mm | Product Net Depth / Length | 76 mm |
| Product Net Weight | 311 g | ETIM 8 | EC002297 - Residual current circuit breaker (RCCB) module |
| ETIM 9 | EC002297 - Residual current circuit breaker (RCCB) module | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer | CN8 | 85363030 |
| eClass | V11.0 : 27142210 | Object Classification Code | F |
| Manufacturer ID | 2CSB204099R1630 |
Specifications may be subject to change without notice
