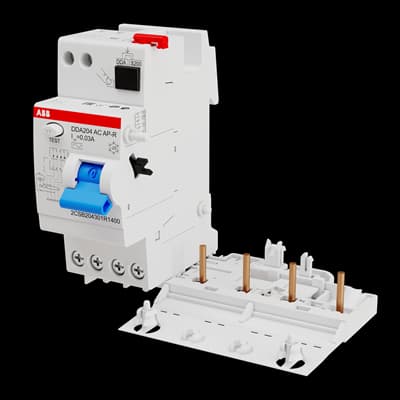

DDA204 AC-63/0.03AP-R
Product ID:80826
Updated: 2026/7/14
Key Features
- 1Ensure comprehensive protection against earth fault currents and indirect contacts.
- 2Apply the device across residential, commercial, and industrial electrical settings.
- 3Benefit from high 30 mA sensitivity for additional direct contact safety.
- 4Meet strict IEC/EN 61009 standards for guaranteed reliability and compliance.
- 5Install easily thanks to a compact design with minimal space requirements.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Operational Voltage | 230/400 V | Rated Frequency (f) | 50 ⦠60 Hz |
| Operating Characteristic | Instantaneous (APR High Immunity) | Number of Batteries | 0 |
| Resistance to Vibrations | 20 Cycles with Load 0.8 In: 1g or 1mm 50 ⦠150 ⦠5 Hz | Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms |
| Product Net Width | 140 mm | Product Net Height | 93 mm |
| Product Net Depth / Length | 76 mm | ETIM 8 | EC002297 - Residual current circuit breaker (RCCB) module |
| ETIM 9 | EC002297 - Residual current circuit breaker (RCCB) module | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer | CN8 | 85363030 |
| eClass | V11.0 : 27142210 | Object Classification Code | F |
| Manufacturer ID | 2CSB204301R1630 |
Specifications may be subject to change without notice
