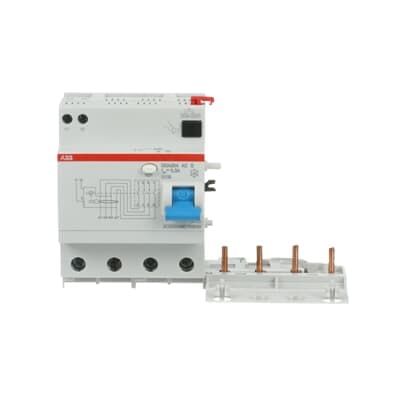

DDA204 AC S-63/0.3
Product ID:80756
Updated: 2026/7/14
Key Features
- 1Safeguard against sinusoidal AC earth fault currents and indirect contact.
- 2Install a compact RCD block ideal for residential, commercial, and industrial panels.
- 3Detect faults with high 0.3 A sensitivity for rapid circuit intervention.
- 4Ensure compliance with key international IEC/EN 61009 safety standards.
- 5Operate reliably across a wide ambient temperature range from -25°C to +55°C.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Standards | EN 61009 Ann. G | Type of Residual Current | Type AC |
| Rated Operational Voltage | 230/400 V | Rated Current (In) | 63 A |
| Rated Residual Current | 300 mA | Rated Frequency (f) | 50 ⦠60 Hz |
| Power Loss | 7.6 W | Number of Poles | 4 |
| Operating Characteristic | Selective | Resistance to Vibrations | 20 Cycles with Load 0.8 In: 1g or 1mm 50 ⦠150 ⦠5 Hz |
| Resistance to Shock acc. to IEC 60068-2-27 | 25g / 2 shocks / 13 ms | Environmental Information | document not needed |
| Product Net Width | 140 mm | Product Net Height | 93 mm |
| Product Net Depth / Length | 76 mm | Product Net Weight | 0.290 kg |
| ETIM 8 | EC002297 - Residual current circuit breaker (RCCB) module | ETIM 9 | EC002297 - Residual current circuit breaker (RCCB) module |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Consumer |
| CN8 | 85363030 | eClass | V11.0 : 27142210 |
| Object Classification Code | F | Manufacturer ID | 2CSB204901R3630 |
Specifications may be subject to change without notice
