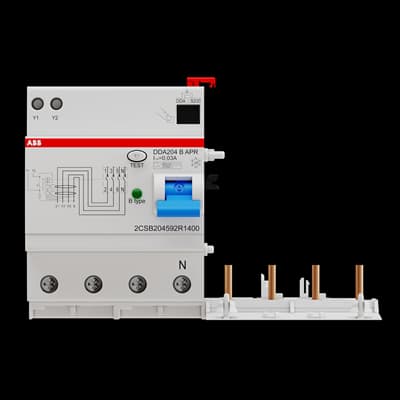

DDA204 B-40/0.03 AP-R
Product ID:76427
Updated: 2026/4/3
Key Features
- 1Detect even the slightest earth fault currents for maximum protection. 2、Save space in panels with compact 140x93x76 mm dimensions. 3、Integrate seamlessly with MCBs S200 series and S300P. 4、Ensure reliable operation meeting IEC/EN 61009 and 62423 standards. 5、Withstand harsh environments from -25°C to +55°C.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Standards | IEC/EN 61009 Ann. G IEC/EN 62423 | Type of Residual Current | Type B |
| Rated Voltage (Ur) | 230...400 V | Rated Operational Voltage | 230/400 V |
| Rated Insulation Voltage (Ui) | 500 V | Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Rated Current (In) | 40 A | Rated Residual Current | 30 mA |
| Maximum Surge Current | 3 kA | Leakage Current Type | B |
| Rated Frequency (f) | 50 ⦠60 Hz | Power Loss | 4.8 W |
| Power Supply Connection | Arbitrary | Electrical Endurance | 10000 cycle |
| Number of Poles | 4 | Operating Characteristic | Instantaneous (APR High Immunity) |
| Connecting Capacity | Rigid 16 ... 16 mm² Flexible 16 ... 16 mm² | Ambient Temperature | -25...55 °C |
| Ambient Air Temperature | Operation -25...55 °C | Degree of Protection | IP2X |
| Resistance to Vibrations | 20 Cycles with Load 0.8 In: 1g or 1mm 50 ⦠150 ⦠5 Hz | Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms |
| Environmental Information | Refer to RoHS | Short-Circuit Current Rating (SCCR) | 0.03 ... 0.03 A |
| Product Net Width | 140 mm | Product Net Height | 93 mm |
| Product Net Depth / Length | 76 mm | Product Net Weight | 337 g |
| Dimension Diagram | 9AKK106930A3989 | ETIM 8 | EC002297 - Residual current circuit breaker (RCCB) module |
| ETIM 9 | EC002297 - Residual current circuit breaker (RCCB) module | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer | CN8 | 85363030 |
| eClass | V11.0 : 27142210 | Object Classification Code | F |
| Manufacturer ID | 2CSB204592R1400 |
Specifications may be subject to change without notice
