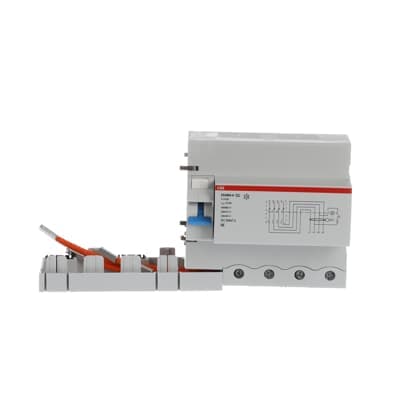

DDA804 A-63/0.03
Product ID:70277
Updated: 2026/4/3
Key Features
- 1Protect personnel and equipment with a high-sensitivity 0.03A residual current rating. 2、Ensure robust safety against both sinusoidal AC and pulsating DC earth fault currents. 3、Integrate seamlessly with ABB S800 MCBs up to 100A for compact panel design. 4、Enhance installation versatility through compatibility with various electrical auxiliaries. 5、Meet IEC/EN 60947-2 standards for reliable performance in demanding environments.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Standards | IEC EN 60947-2 Ann. B | Type of Residual Current | Type A |
| Suitable For | S800S S800N S800C S800B | Rated Voltage (Ur) | 230/400 V AC 240/415 V AC 400/690 V AC |
| Rated Operational Voltage | 400/690 V | Rated Insulation Voltage (Ui) | 690 V |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV | Rated Current (In) | 63 A |
| Rated Residual Current | 30 mA | Maximum Surge Current | 0.25 kA |
| Leakage Current Type | A | Rated Frequency (f) | 50 ⦠60 Hz |
| Power Loss | 13.5 W | Number of Poles | 4 |
| Operating Characteristic | Instantaneous | Connecting Capacity | Rigid 6 ⦠50 mm² Flexible 6 ⦠70 mm² |
| Ambient Temperature | -25...60 °C | Ambient Air Temperature | Operation -25...60 °C |
| Degree of Protection | IP2X | Environmental Information | document not needed |
| Short-Circuit Current Rating (SCCR) | 0.03 ... 0.03 A | Width in Number of Modular Spacings | 6.5 |
| Product Net Width | 117 mm | Product Net Height | 108.2 mm |
| Product Net Depth / Length | 82.3 mm | Product Net Weight | 460 g |
| ETIM 8 | EC002297 - Residual current circuit breaker (RCCB) module | ETIM 9 | EC002297 - Residual current circuit breaker (RCCB) module |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Business |
| CN8 | 85363030 | eClass | V11.0 : 27142210 |
| Object Classification Code | F | Manufacturer ID | 2CSB804101R1630 |
Specifications may be subject to change without notice
