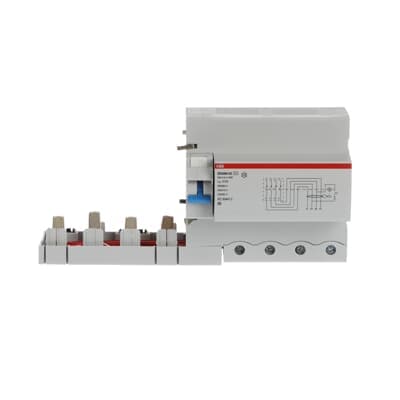

DDA804 AC-100/0.03
Product ID:81791
Updated: 2026/4/3
Key Features
- 1Provide advanced protection against indirect and direct contacts with 0.03A sensitivity. 2、Support demanding installations with a high 100A current rating. 3、Ensure wide compatibility by being designed for AC electrical systems. 4、Integrate easily into panels using a space-saving modular design. 5、Meet IEC/EN 61008 standards for guaranteed safety and reliability.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Standards | IEC EN 60947-2 Ann. B | Type of Residual Current | Type AC |
| Suitable For | S800S S800N S800C S800B | Rated Voltage (Ur) | 230/400 V AC 240/415 V AC 400/690 V AC |
| Rated Operational Voltage | 400/690 V | Rated Insulation Voltage (Ui) | 690 V |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV | Rated Current (In) | 100 A |
| Rated Residual Current | 30 mA | Maximum Surge Current | 0.25 kA |
| Leakage Current Type | AC | Rated Frequency (f) | 50 ⦠60 Hz |
| Power Loss | 10.5 W | Number of Poles | 4 |
| Operating Characteristic | Instantaneous | Options Provided | - |
| Connecting Capacity | Rigid 6 ⦠50 mm² Flexible 6 ⦠70 mm² | Ambient Temperature | -25...60 °C |
| Ambient Air Temperature | Operation -25...60 °C | Degree of Protection | IP2X |
| Environmental Information | document not needed | Short-Circuit Current Rating (SCCR) | 0.03 ... 0.03 A |
| Width in Number of Modular Spacings | 6.5 | Product Net Width | 117 mm |
| Product Net Height | 108.2 mm | Product Net Depth / Length | 82.3 mm |
| Product Net Weight | 460 g | ETIM 8 | EC002297 - Residual current circuit breaker (RCCB) module |
| ETIM 9 | EC002297 - Residual current circuit breaker (RCCB) module | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business | CN8 | 85363030 |
| eClass | V11.0 : 27142210 | Object Classification Code | F |
| Manufacturer ID | 2CSB804001R1100 |
Specifications may be subject to change without notice
