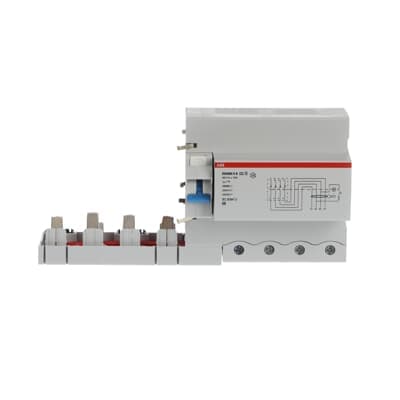

DDA804 A S-100/1
Product ID:68904
Updated: 2026/4/3
Key Features
- 1Provide robust protection against earth fault currents for enhanced safety. 2、Enable selective tripping with an intentional delay to maintain uptime. 3、Support flexible installations with a versatile 4-pole configuration. 4、Handle significant loads with a 100 A rated current capacity. 5、Ensure compliance and reliability by meeting IEC/EN standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Standards | IEC EN 60947-2 Ann. B | Type of Residual Current | Type A |
| Suitable For | S800S S800N S800C S800B | Rated Voltage (Ur) | 230/400 V AC 240/415 V AC 400/690 V AC |
| Rated Operational Voltage | 400/690 V | Rated Insulation Voltage (Ui) | 690 V |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV | Rated Current (In) | 100 A |
| Rated Residual Current | 1000 mA | Maximum Surge Current | 5 kA |
| Leakage Current Type | A | Rated Frequency (f) | 50 ⦠60 Hz |
| Power Loss | 10.5 W | Number of Poles | 4 |
| Operating Characteristic | Selective | Connecting Capacity | Rigid 6 ⦠50 mm² Flexible 6 ⦠70 mm² |
| Ambient Temperature | -25...60 °C | Ambient Air Temperature | Operation -25...60 °C |
| Degree of Protection | IP2X | Environmental Information | refer to RoHS information |
| Short-Circuit Current Rating (SCCR) | 1...1 A | Width in Number of Modular Spacings | 6.5 |
| Product Net Width | 117 mm | Product Net Height | 108.2 mm |
| Product Net Depth / Length | 82.3 mm | Product Net Weight | 460 g |
| ETIM 8 | EC002297 - Residual current circuit breaker (RCCB) module | ETIM 9 | EC002297 - Residual current circuit breaker (RCCB) module |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Business |
| CN8 | 85363030 | eClass | V11.0 : 27142210 |
| Object Classification Code | F | Manufacturer ID | 2CSB804201R5000 |
