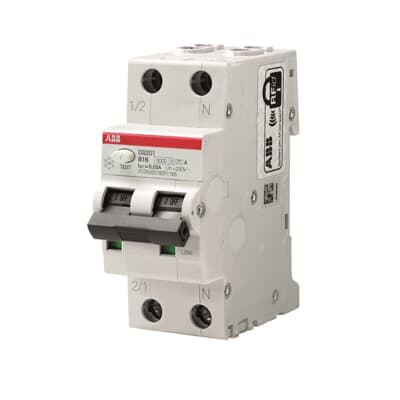

DS201 B16 A30 Transparent
Product ID:69840
Updated: 2026/7/15
Key Features
- 1Safeguard circuits with reliable 30mA earth leakage protection.
- 2Install easily in tight spaces using the compact DIN rail mount.
- 3Ensure high safety with a 6kA rated short-circuit breaking capacity.
- 4Meet strict safety and efficiency standards like IEC 61009-1.
- 5Secure durable connections with failsafe bi-directional terminals.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Standards | IEC 61009-1 IEC 61009-2-1 | Tripping Characteristic | B |
| Type of Residual Current | Type A | Rated Operational Voltage | acc. to IEC 60898-1 230 V |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 500 V | Test Voltage (Ut) | 110 ⦠264 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV | Dielectric Test Voltage | 2 kV |
| Rated Current Sensitivity | 0.03 A | Rated Current (In) | 30 A |
| Rated Residual Operating Current (IÎn) | 6000 A | Rated Residual Current | 30 mA |
| Rated Short-Circuit Capacity | 6 kA | Rated Ultimate Short-Circuit Breaking Capacity (Icu) | 6 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 7.5 kA | Rated Frequency (f) | 50 ⦠60 Hz |
| Power Loss | Average per Pole 4.1 W Phase Pole 5.5 W Neutral Pole 2.6 W Total 8.1 W | Power Supply Connection | Arbitrary |
| Contact Position Indication | Red ON / Green OFF | Energy Limiting Class | 3 |
| Electrical Endurance | 10000 cycle | Mechanical Endurance | 20000 cycle |
| Number of Protected Poles | 1 | Number of Poles | 2 |
| Number of Modular Spacings per DIN Rail | 2 | Fault Indication | Blue flag on toggle |
| Operating Characteristic | Instantaneous | Overvoltage Category | III |
| Position of Neutral Terminals | Right | Tightening Torque | 2.8 N·m |
| Mounting Type | DIN-Rail | Screw Terminal Type | Failsafe Bi-directional Cylinder-lift Terminal |
| Mounting Position | Any | Accessories Available | No |
| Number of Batteries | 0 | Connecting Capacity | Flexible 10/10 mm² Flexible Busbar;25 ⦠25 mm² Flexible Rigid;25 ⦠25 mm² |
| Wire Stripping Length | 12 mm | Terminal Type | Screw Terminals |
| Ambient Air Temperature | Operation -25 ⦠55 °C | Reference Ambient Air Temperature | 30 °C |
| Degree of Protection | IP20 IP40 | Pollution Degree | 2 |
| Environmental Conditions | 28 cycles with 55 °C / 90-96 % and 25 °C / 95-100 % | Resistance to Vibrations | 20 Cycles with Load 0.8 In: 1g or 1mm 50 ⦠150 ⦠5 Hz |
| Resistance to Shock acc. to IEC 60068-2-27 | 25g / 2 shocks / 13 ms | Width in Number of Modular Spacings | 2 |
| Product Net Width | 35 mm | Product Net Height | 85 mm |
| Product Net Depth / Length | 69 mm | Product Net Weight | 200 g |
| Built-In Depth (t2) | 69 mm | ETIM 8 | EC000905 - Earth leakage circuit breaker |
| ETIM 9 | EC000905 - Earth leakage circuit breaker | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer | CN8 | 85363010 |
| Object Classification Code | Q | Manufacturer ID | 2CSF202001T1400 |
Specifications may be subject to change without notice
