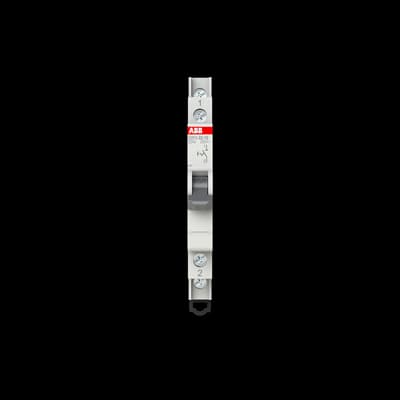

E211-32-10
Product ID:84996
Updated: 2026/4/3
Key Features
- 1Select a high-performance switch for distribution boards rated at 32A. 2、Utilize the 1NO contact configuration for precise control. 3、Operate reliably at 250VAC with low power loss of 2.73W. 4、Ensure safety by meeting EN60669-1 and EN60669-2-4 standards. 5、Save panel space with compact 9mm width, 85mm height, and 67.5mm depth.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Standards | EN60669-1 EN60669-2-4 IEC/EN60947-3 IEC60068-2-2 IEC60068-2-1 IEC60068-2-30 VDE0632-1 VDE0632-2-4 UL508 | Rated Voltage (Ur) | Minimum 250 V |
| Rated Operational Voltage | acc. to EN 250/400 V AC acc. to UL 508 240 V AC | Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Input Voltage Type | AC | Rated Current (In) | 32 A |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 3 kA | Rated Frequency (f) | 50/60 Hz |
| Minimum Switching Capacity | 24 V AC 25 mA | Power Loss | 1.12 W |
| Contact Position Indication | ON / OFF | Number of Contacts NO | 1 |
| Number of Main Contacts NC | 0 | Number of Main Contacts NO | 1 |
| Number of Auxiliary Contacts CO (SPDT) | 0 | Number of Poles | 1P |
| Tightening Torque | 1.2-1.5 N·m | Utilization Category | Switching of mixed resistive and inductive loads, including moderate overloads - frequent actuation (AC-22A) Switching of mixed resistive and inductive loads, including moderate overloads (i.e. shunt motors) - frequent actuation (DC-22A) |
| Switch Type | Double Interrupting Contacts | Material of Conductor | Copper |
| Remarks | Sealable in the On and Off positions | Cover Color | Grey |
| Control Element Color | Grey | Connecting Capacity | Solid 1x1â¦6 mm² Solid 2x2.5 mm² Flexible 1x0.75â¦2x2.5 mm² |
| Rated Operational Current AC-22A (Ie) | (400 V) 32 A | Rated Operational Current DC-22A (Ie) | (50 V DC) 32 A (200 V DC) 3 A |
| Ambient Air Temperature | Operation -25...+55 °C Storage -40...+70 °C | Degree of Protection | IP20 |
| Environmental Information | 2CCC441003C0201 | Short-Circuit Current Rating (SCCR) | 3 kA |
| Width in Number of Modular Spacings | 0.5 | Product Net Width | 9 mm |
| Product Net Height | 85 mm | Product Net Depth / Length | 68 mm |
| Product Net Weight | 35 g | Built-In Depth (t2) | 68 mm |
| ETIM 8 | EC001545 - Main switch for distribution board | ETIM 9 | EC001545 - Main switch for distribution board |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Consumer |
| CN8 | 85365053 | eClass | V11.0 : 27142301 |
| Object Classification Code | S | Manufacturer ID | 2CCA703002R0001 |
Specifications may be subject to change without notice
