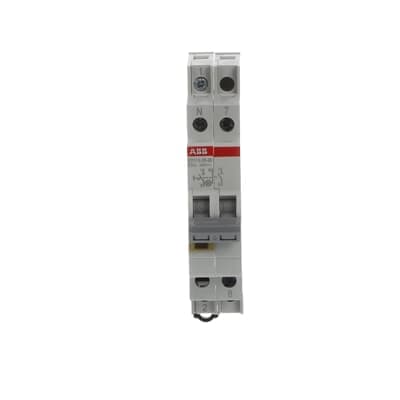

E211X-25-20
Product ID:82727
Updated: 2026/4/3
Key Features
- 1Ensure reliable performance with robust components. 2、Read switch status easily via the yellow LED. 3、Apply it across diverse electrical engineering applications. 4、Install effortlessly in compact spaces (18x85x67.5 mm). 5、Meet DIN EN 60669-1 and VDE 0632 standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Standards | EN60669-1 EN60669-2-4 IEC/EN60947-3 IEC60068-2-2 IEC60068-2-1 IEC60068-2-30 VDE0632-1 VDE0632-2-4 UL508 | Rated Voltage (Ur) | Minimum 400 V |
| Rated Operational Voltage | acc. to EN 250/400 V AC acc. to UL 508 240 V AC | Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Auxiliary Voltage AC/DC | LED Indicator 115...250 V AC | Input Voltage Type | AC |
| Rated Current (In) | 25 A | Rated Service Short-Circuit Breaking Capacity (Ics) | 3 kA |
| Rated Frequency (f) | 50/60 Hz | Minimum Switching Capacity | 24 V AC 25 mA |
| Power Watt | 0.18 W | Contact Position Indication | ON / OFF |
| Number of Contacts NO | 2 | Number of Main Contacts NC | 0 |
| Number of Main Contacts NO | 2 | Number of Auxiliary Contacts CO (SPDT) | 0 |
| Number of Poles | 2P | Number of LEDs | 1 |
| Tightening Torque | 1.2-1.5 N·m | Utilization Category | Switching of mixed resistive and inductive loads, including moderate overloads - frequent actuation (AC-22A) Switching of mixed resistive and inductive loads, including moderate overloads (i.e. shunt motors) - frequent actuation (DC-22A) |
| Lamp Type | LED | Switch Type | Double Interrupting Contacts |
| Material of Conductor | Copper | Remarks | Sealable in the On and Off positions |
| Color | Yellow | Cover Color | Grey |
| Control Element Color | Grey | Lamp Color | Yellow |
| Connecting Capacity | Solid 1x1â¦6 mm² Solid 2x2.5 mm² Flexible 1x0.75â¦2x2.5 mm² | Rated Operational Current AC-22A (Ie) | (400 V) 25 A |
| Rated Operational Current DC-22A (Ie) | (50 V DC) 25 A (200 V DC) 2 A | Ambient Air Temperature | Operation -25...+55 °C Storage -40...+70 °C |
| Degree of Protection | IP20 | Environmental Information | 2CCC441003C0201 |
| Short-Circuit Current Rating (SCCR) | 3 kA | Width in Number of Modular Spacings | 1 |
| Product Net Width | 18 mm | Product Net Height | 85 mm |
| Product Net Depth / Length | 68 mm | Product Net Weight | 50 g |
| Built-In Depth (t2) | 68 mm | ETIM 8 | EC001545 - Main switch for distribution board |
| ETIM 9 | EC001545 - Main switch for distribution board | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer | CN8 | 85365053 |
| eClass | V11.0 : 27142301 | Object Classification Code | S |
| Manufacturer ID | 2CCA703111R0001 |
Specifications may be subject to change without notice
