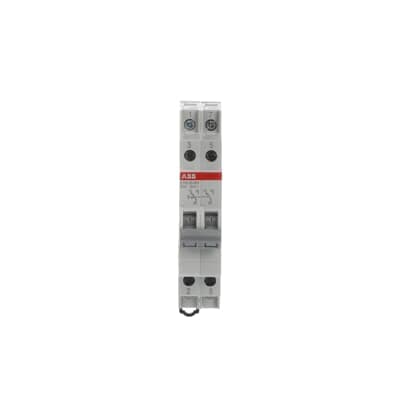

E213-25-002
Product ID:83420
Updated: 2026/7/14
Key Features
- 1Operate reliably at 250 VAC for broad compatibility.
- 2Handle high-current loads up to 25 A safely.
- 3Protect internal components with a sturdy IP20 enclosure.
- 4Simplify setup with standard DIN rail mounting design.
- 5Configure circuits flexibly using the 2CO contact setup.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Standards | EN60669-1 VDE0632-1 IEC60068-2-2 IEC60068-2-1 IEC60068-2-38 UL508 | Rated Voltage (Ur) | Minimum 250 V |
| Rated Operational Voltage | acc. to EN 250 V AC acc. to UL 508 240 V AC | Input Voltage Type | AC |
| Rated Current (In) | 25 A | Rated Frequency (f) | 50/60 Hz |
| Power Loss | 0.8 W | Number of Contacts CO | 2 |
| Number of Main Contacts NC | 0 | Number of Main Contacts NO | 0 |
| Number of Auxiliary Contacts CO (SPDT) | 2 | Number of Poles | 2P |
| Tightening Torque | 1.2-1.5 N·m | Switch Type | Double Interrupting Contacts |
| Material of Conductor | Copper | Remarks | Sealable in the On and Off positions |
| Cover Color | Grey | Control Element Color | Grey |
| Connecting Capacity | Solid 1x1â¦6 mm² Solid 2x2.5 mm² Flexible 1x0.75â¦2x2.5 mm² | Ambient Air Temperature | Operation -25...+55 °C Storage -40...+70 °C |
| Degree of Protection | IP20 | Environmental Information | 2CCC441003C0201 |
| Width in Number of Modular Spacings | 1 | Product Net Width | 18 mm |
| Product Net Height | 85 mm | Product Net Depth / Length | 68 mm |
| Product Net Weight | 87 g | Built-In Depth (t2) | 68 mm |
| ETIM 8 | EC001545 - Main switch for distribution board | ETIM 9 | EC001545 - Main switch for distribution board |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Consumer |
| CN8 | 85365053 | eClass | V11.0 : 27142301 |
| Object Classification Code | S | Manufacturer ID | 2CCA703046R0001 |
Specifications may be subject to change without notice
