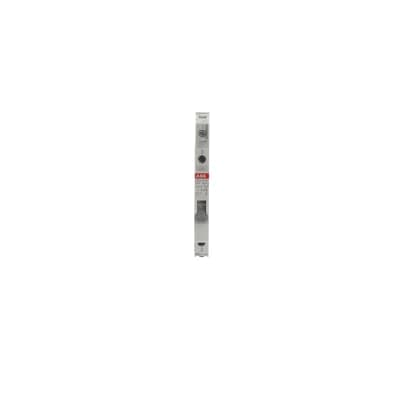

E214-16-101
Product ID:83726
Updated: 2026/4/3
Key Features
- 1Achieve high reliability with up to 10,000 mechanical cycles. 2、Integrate a compact and elegant design for any industrial environment. 3、Simplify handling and enable easy mounting for optimal functionality. 4、Ensure safe connection using proven cage clamp technology. 5、Guarantee compliance with international standards like DIN EN 60669-1.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Standards | EN60669-1 VDE0632-1 IEC60068-2-2 IEC60068-2-1 IEC60068-2-38 UL508 | Rated Voltage (Ur) | Minimum 250 V |
| Rated Operational Voltage | acc. to EN 250 V AC acc. to UL 508 240 V AC | Input Voltage Type | AC |
| Rated Current (In) | 16 A | Rated Service Short-Circuit Breaking Capacity (Ics) | 3 kA |
| Rated Frequency (f) | 50/60 Hz | Power Loss | 0.32 W |
| Number of Contacts CO | 1 | Number of Main Contacts NC | 0 |
| Number of Main Contacts NO | 0 | Number of Auxiliary Contacts CO (SPDT) | 1 |
| Number of Poles | 1P | Tightening Torque | 1.2-1.5 N·m |
| Switch Type | Double Interrupting Contacts | Material of Conductor | Copper |
| Remarks | Sealable in the On and Off positions | Cover Color | Grey |
| Control Element Color | Grey | Connecting Capacity | Solid 1x1â¦6 mm² Solid 2x2.5 mm² Flexible 1x0.75â¦2x2.5 mm² |
| Ambient Air Temperature | Operation -25...+55 °C Storage -40...+70 °C | Degree of Protection | IP20 |
| Environmental Information | 2CCC441003C0201 | Width in Number of Modular Spacings | 0.5 |
| Product Net Width | 9 mm | Product Net Height | 85 mm |
| Product Net Depth / Length | 68 mm | Product Net Weight | 44 g |
| Built-In Depth (t2) | 68 mm | ETIM 8 | EC001545 - Main switch for distribution board |
| ETIM 9 | EC001545 - Main switch for distribution board | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer | CN8 | 85365053 |
| UNSPSC | 39122214 | eClass | V11.0 : 27142301 |
| IDEA Granular Category Code (IGCC) | 5208 >> Controller switch | Object Classification Code | S |
| Manufacturer ID | 2CCA703025R0001 |
Specifications may be subject to change without notice
