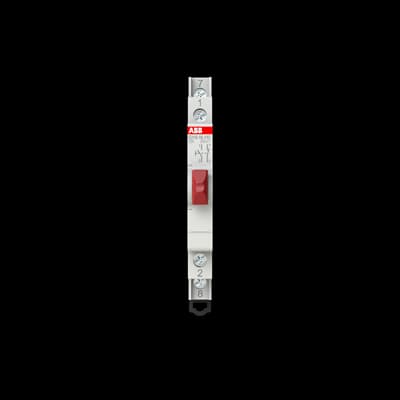

E215-16-11C
Product ID:87796
Updated: 2026/4/3
Key Features
- 1Handle 16 A current reliably for stable operations. 2、Rated for 250 V to suit diverse industrial voltages. 3、Configure circuits with 1NC and 1NO contact flexibility. 4、Protect against dust with its IP20 enclosure rating. 5、Install easily using 93x9x85 mm compact dimensions.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Standards | EN60068-2-1 EN60068-2-2 EN60068-2-30 DIN EN 60669-1 VDE 0632-1 UL508 | Rated Voltage (Ur) | Lamp 48 ... 48 V |
| Rated Operational Voltage | acc. to EN 250 V AC acc. to UL 508 240 V AC | Maximum Switching Voltage | 250 V |
| Rated Current (In) | 16 A | Rated Frequency (f) | 50/60 Hz |
| Power Loss | 0.5 W | Power Watt | 0.72 W |
| Number of Contacts NC | 1 | Number of Contacts NO | 1 |
| Number of Main Contacts NC | 1 | Number of Main Contacts NO | 1 |
| Number of Auxiliary Contacts CO (SPDT) | 0 | Number of Poles | 2P |
| Tightening Torque | 1.2-1.5 N·m | Switch Type | Double Interrupting Contacts |
| Material of Conductor | Copper | Remarks | Sealable in the On and Off positions |
| Color | Red | Control Element Color | Red |
| Connecting Capacity | Solid 1x1â¦6 mm² Solid 2x2.5 mm² Flexible 1x0.75â¦2x2.5 mm² | Ambient Air Temperature | Operation -25...+55 °C Storage -40...+70 °C |
| Degree of Protection | IP20 | Environmental Information | 2CCC441003C0201 |
| Width in Number of Modular Spacings | 0.5 | Product Net Width | 9 mm |
| Product Net Height | 85 mm | Product Net Depth / Length | 68 mm |
| Product Net Weight | 49 g | Built-In Depth (t2) | 75 mm |
| ETIM 8 | EC001546 - Push button for distribution board | ETIM 9 | EC001546 - Push button for distribution board |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Consumer |
| CN8 | 85365053 | UNSPSC | 39122216 |
| eClass | V11.0 : 27142302 | IDEA Granular Category Code (IGCC) | 5210 >> Push button switch |
| Object Classification Code | S | Manufacturer ID | 2CCA703151R0001 |
Specifications may be subject to change without notice
