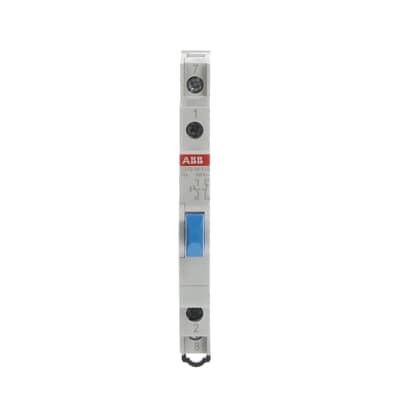

E215-16-11G
Product ID:70142
Updated: 2026/4/3
Key Features
- 1Ensure reliable 16A, 250VAC switching performance. 2、Utilize versatile 1NO+1NC contact configuration for control. 3、Save panel space with a compact 9mm width design. 4、Meet global safety standards including EN60669-1 and UL508. 5、Reduce energy loss with efficient 0.5W power consumption.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Standards | EN60068-2-1 EN60068-2-2 EN60068-2-30 DIN EN 60669-1 VDE 0632-1 UL508 | Rated Voltage (Ur) | Lamp 48 ... 48 V |
| Rated Operational Voltage | acc. to EN 250 V AC acc. to UL 508 240 V AC | Maximum Switching Voltage | 250 V |
| Rated Current (In) | 16 A | Rated Frequency (f) | 50/60 Hz |
| Power Loss | 0.5 W | Power Watt | 0.72 W |
| Number of Contacts NC | 1 | Number of Contacts NO | 1 |
| Number of Main Contacts NC | 1 | Number of Main Contacts NO | 1 |
| Number of Auxiliary Contacts CO (SPDT) | 0 | Number of Poles | 2 |
| Tightening Torque | 1.2-1.5 N·m | Switch Type | Double Interrupting Contacts |
| Material of Conductor | Copper | Remarks | Sealable in the On and Off positions |
| Color | Blue | Control Element Color | Blue |
| Connecting Capacity | Solid 1x1â¦6 mm² Solid 2x2.5 mm² Flexible 1x0.75â¦2x2.5 mm² | Ambient Air Temperature | Operation -25...+55 °C Storage -40...+70 °C |
| Degree of Protection | IP20 | Environmental Information | 2CCC441003C0201 |
| Width in Number of Modular Spacings | 0.5 | Product Net Width | 9 mm |
| Product Net Height | 85 mm | Product Net Depth / Length | 68 mm |
| Product Net Weight | 49 g | Built-In Depth (t2) | 75 mm |
| ETIM 8 | EC001546 - Push button for distribution board | ETIM 9 | EC001546 - Push button for distribution board |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Consumer |
| CN8 | 85365053 | UNSPSC | 39122216 |
| eClass | V11.0 : 27142302 | IDEA Granular Category Code (IGCC) | 5210 >> Push button switch |
| Object Classification Code | S | Manufacturer ID | 2CCA703155R0001 |
Specifications may be subject to change without notice
