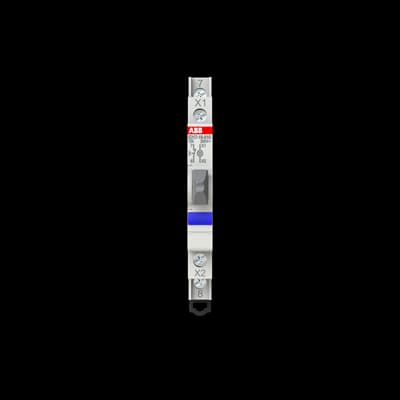

E217-16-01G
Product ID:86674
Updated: 2026/4/3
Key Features
- 1Control circuits efficiently with 16A current rating. 2、Save panel space with 0.5 module width. 3、Receive clear visual feedback from the blue LED. 4、Ensure robust performance with IP20 enclosure. 5、Install flexibly using DIN rail mounting.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Standards | EN60068-2-1 EN60068-2-2 EN60068-2-30 DIN EN 60669-1 VDE 0632-1 UL508 | Rated Voltage (Ur) | Lamp 230 ... 250 V |
| Rated Operational Voltage | acc. to EN 250 V AC acc. to UL 508 240 V AC | Voltage Range | 115 ... 250 V AC |
| Auxiliary Voltage AC/DC | LED Indicator 115...250 V AC | Maximum Switching Voltage | 250 V |
| Rated Current (In) | 16 A | Rated Frequency (f) | 50/60 Hz |
| Power Loss | 1.1 W | Power Watt | 1.1 W |
| Number of Contacts NC | 1 | Number of Main Contacts NC | 1 |
| Number of Main Contacts NO | 0 | Number of Auxiliary Contacts CO (SPDT) | 0 |
| Number of Poles | 1P | Number of LEDs | 1 |
| Tightening Torque | 1.2-1.5 N·m | Switch Type | Double Interrupting Contacts |
| Material of Conductor | Copper | Remarks | Sealable in the On and Off positions |
| Color | Blue | Control Element Color | Grey |
| Lamp Color | Blue | Connecting Capacity | Solid 1x1â¦6 mm² Solid 2x2.5 mm² Flexible 1x0.75â¦2x2.5 mm² |
| Ambient Air Temperature | Operation -25...+55 °C Storage -40...+70 °C | Degree of Protection | IP20 |
| Environmental Information | 2CCC441003C0201 | Width in Number of Modular Spacings | 0.5 |
| Product Net Width | 9 mm | Product Net Height | 85 mm |
| Product Net Depth / Length | 68 mm | Product Net Weight | 53 g |
| Built-In Depth (t2) | 75 mm | ETIM 8 | EC001546 - Push button for distribution board |
| ETIM 9 | EC001546 - Push button for distribution board | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer | CN8 | 85365053 |
| eClass | V11.0 : 27142302 | Object Classification Code | S |
| Manufacturer ID | 2CCA703254R0001 |
Specifications may be subject to change without notice
