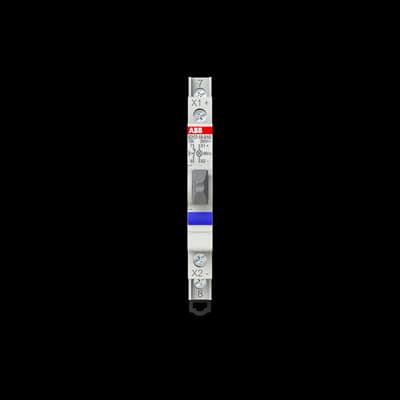

E217-16-01G48
Product ID:86519
Updated: 2026/4/3
Key Features
- 1Ensure reliable signaling with a maintenance-free LED for clear visual indication. 2、Support robust performance with a high current rating of 16A at 250 VAC. 3、Save panel space using a compact modular design with 0.5 HP width. 4、Achieve environmental reliability with durable IP20 protection standards. 5、Adapt to various applications with a versatile 12-48 VAC/DC voltage range.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Standards | EN60068-2-1 EN60068-2-2 EN60068-2-30 DIN EN 60669-1 VDE 0632-1 UL508 | Rated Voltage (Ur) | Lamp 48 ... 48 V |
| Rated Operational Voltage | acc. to EN 250 V AC acc. to UL 508 240 V AC | Voltage Range | 12 ... 48 V AC/DC |
| Auxiliary Voltage AC/DC | LED Indicator 12â¦48 V AC | Maximum Switching Voltage | 250 V |
| Rated Current (In) | 16 A | Rated Frequency (f) | 50/60 Hz |
| Power Loss | 0.72 W | Power Watt | 0.72 W |
| Number of Contacts NC | 1 | Number of Main Contacts NC | 1 |
| Number of Main Contacts NO | 0 | Number of Auxiliary Contacts CO (SPDT) | 0 |
| Number of Poles | 1P | Number of LEDs | 1 |
| Tightening Torque | 1.2-1.5 N·m | Switch Type | Double Interrupting Contacts |
| Material of Conductor | Copper | Remarks | Sealable in the On and Off positions |
| Color | Blue | Control Element Color | Grey |
| Lamp Color | Blue | Connecting Capacity | Solid 1x1â¦6 mm² Solid 2x2.5 mm² Flexible 1x0.75â¦2x2.5 mm² |
| Ambient Air Temperature | Operation -25...+55 °C Storage -40...+70 °C | Degree of Protection | IP20 |
| Environmental Information | 2CCC441003C0201 | Width in Number of Modular Spacings | 0.5 |
| Product Net Width | 9 mm | Product Net Height | 85 mm |
| Product Net Depth / Length | 68 mm | Product Net Weight | 53 g |
| Built-In Depth (t2) | 75 mm | ETIM 8 | EC001546 - Push button for distribution board |
| ETIM 9 | EC001546 - Push button for distribution board | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer | CN8 | 85365053 |
| eClass | V11.0 : 27142302 | Object Classification Code | S |
| Manufacturer ID | 2CCA703264R0001 |
Specifications may be subject to change without notice
