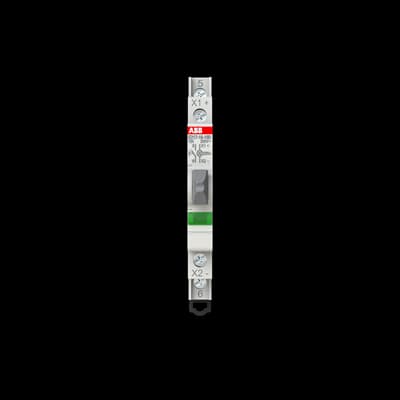

E217-16-10D220
Product ID:87250
Updated: 2026/4/3
Key Features
- 1Feature a maintenance-free LED for reliable operation. 2、Support high current applications rated for 16A. 3、Construct with durable materials for long-lasting performance. 4、Install easily on DIN rail to simplify setup. 5、Meet EN60669-1 standards for safety and reliability.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Standards | EN60068-2-1 EN60068-2-2 EN60068-2-30 DIN EN 60669-1 VDE 0632-1 UL508 | Rated Voltage (Ur) | Lamp 230 ... 250 V |
| Rated Operational Voltage | acc. to EN 250 V AC acc. to UL 508 240 V AC | Voltage Range | 60 ... 220 V DC |
| Auxiliary Voltage AC/DC | LED Indicator 60â¦220 V AC | Maximum Switching Voltage | 250 V |
| Rated Current (In) | 16 A | Rated Frequency (f) | 50/60 Hz |
| Power Loss | 1.5 W | Power Watt | 1.5 W |
| Number of Contacts NO | 1 | Number of Main Contacts NC | 0 |
| Number of Main Contacts NO | 1 | Number of Auxiliary Contacts CO (SPDT) | 0 |
| Number of Poles | 1P | Number of LEDs | 1 |
| Tightening Torque | 1.2-1.5 N·m | Switch Type | Double Interrupting Contacts |
| Material of Conductor | Copper | Remarks | Sealable in the On and Off positions |
| Color | Green | Control Element Color | Grey |
| Lamp Color | Green | Connecting Capacity | Solid 1x1â¦6 mm² Solid 2x2.5 mm² Flexible 1x0.75â¦2x2.5 mm² |
| Ambient Air Temperature | Operation -25...+55 °C Storage -40...+70 °C | Degree of Protection | IP20 |
| Environmental Information | 2CCC441003C0201 | Width in Number of Modular Spacings | 0.5 |
| Product Net Width | 9 mm | Product Net Height | 85 mm |
| Product Net Depth / Length | 68 mm | Product Net Weight | 53 g |
| Built-In Depth (t2) | 75 mm | ETIM 8 | EC001546 - Push button for distribution board |
| ETIM 9 | EC001546 - Push button for distribution board | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer | CN8 | 85365053 |
| eClass | V11.0 : 27142302 | Object Classification Code | S |
| Manufacturer ID | 2CCA703167R0001 |
Specifications may be subject to change without notice
